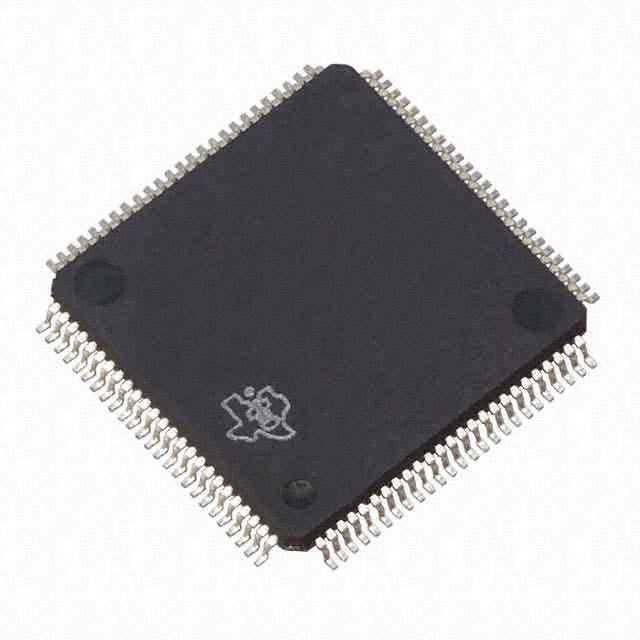

LM3S9D96-IQC80-A2

TEXAS INSTRUMENTS  LM3S9D96-IQC80-A2.  芯片, 微控制器, 32位, ARM STELLARIS, 80MHZ, 100-LQFP

The is a Stellaris Microcontroller features 32-bit ARM® Cortex™-M3 80MHz processor core with System Timer SysTick, integrated Nested Vectored Interrupt Controller NVIC, Memory Protection Unit MPU, System Control Block SCB and Thumb-2 instruction set. On-chip memory, featuring 512kB single-cycle flash up to 50MHz 96kB single-cycle SRAM, internal ROM loaded with StellarisWare® software. Highly configurable 10/100 Ethernet Controller that conforms to the IEEE 802.3-2002 specification with full- and half-duplex modes for both 100Mbps and 10Mbps operation, with IEEE 1588 PTP hardware support and automatic MDI/MDI-X cross-over correction with software assist. Full-featured debug solution with debug access via JTAG and Serial Wire interfaces and IEEE 1149.1-1990 compliant Test Access Port TAP controller.

.

Multiple clock sources for microcontroller system clock

.

SafeRTOS™ pre-emptive real-time kernel

.

Universal serial bus USB controller

This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
