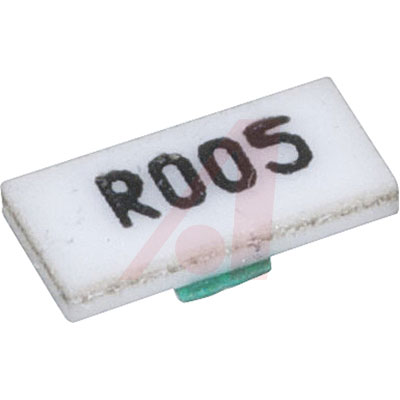

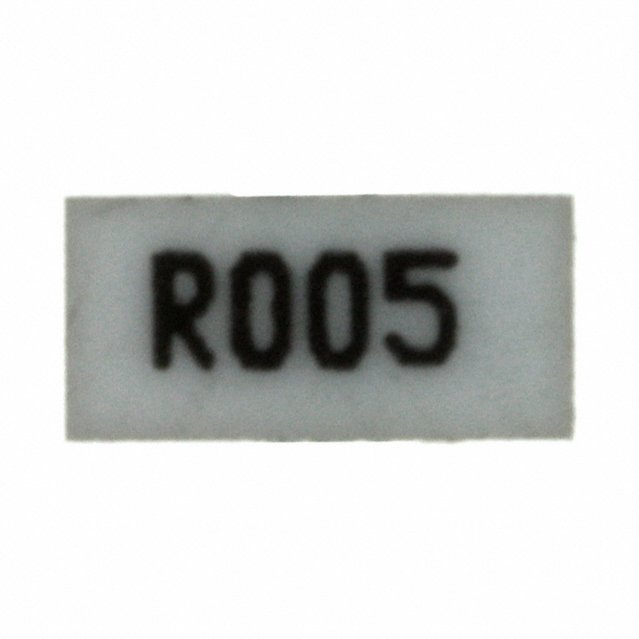

MCS1632R005FER

OHMITE  MCS1632R005FER.  检流电阻, 0.005Ω, 1W, ±1%, 整卷

**Features**

* NiCu or MnCu Resistive Alloy; Material TCR ±10 ppm°/K

* Marking Epoxy UL-94-VO Conformal

* 96% Alumina Substrate Thermo Dissipation Protective Layer

* Cu Terminal Electrode Pb-Free Termination

* Flame Retardant Epoxy Protective Coat

* Ultra Low Resistance Value 0.005 Ohms to 0.05 Ohms

* Superior Temperature Coefficient Characteristics; Resistance vs Temperature Change from 25°C to 125°C within 10 ppm/°C to 50 ppm/°C

* Low Inductance, Low Thermo EMF <50μV/°C

**Specifications**

* Color: White Top / Green Bottom

* Power: 1 and 2 Watts at 70°C

* TCR: ±50 ppm/°C

* Tolerance: 1% Others Available: 3% and 5%
