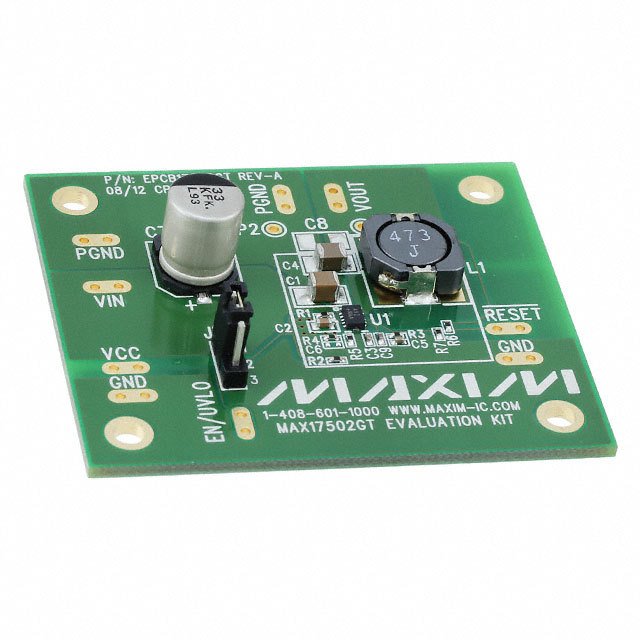

MAX17502GTEVKIT#

评估套件, MAX17502GT, DC/DC转换器, 降压, 15V至60V输入, 1A输出

The from Products is a MAX17502G evaluation kit. This EV kit provides a proven design to evaluate the MAX17502G high efficiency, high voltage, synchronous step-down DC to DC converter in a TDFN package. It generates 12V at load currents up to 1A from a 15V to 60V input supply. The EV kit features a 600KHz fixed switching frequency for optimum efficiency and component size. The EV kit features a forced PWM control scheme that provides constant switching frequency operation at all load and line conditions.

.

Operates from a 15V to 60V input supply

.

12V output voltage

.

1A output current

.

600KHz switching frequency

.

Enable/UVLO input

.

Resistor-programmable UVLO threshold

.

Base Station, VOIP, Telecom; Battery-Powered Equipment; General-Purpose Point-of-Load; Home Theater; HVAC and Building Control; Industrial Process Control

.

Overcurrent and overtemperature protection

.

Proven PCB layout

.

Fully assembled and tested
