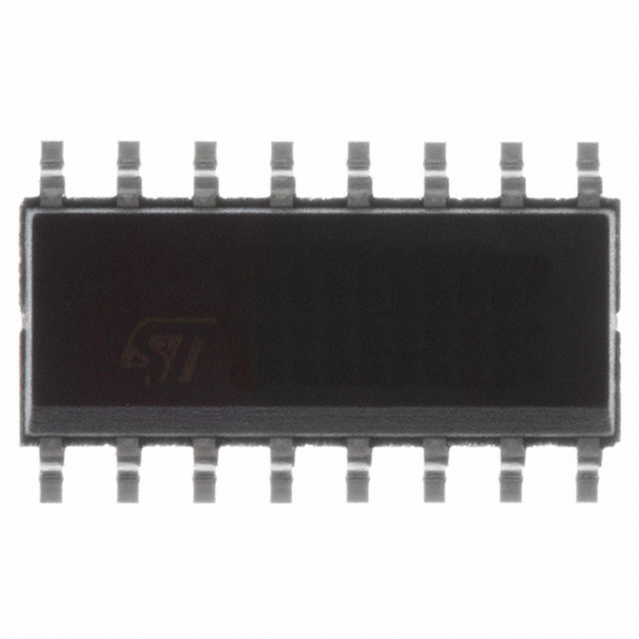

STMICROELECTRONICS M74HC365RM13TR 芯片, 逻辑芯片 - 74HC, 缓冲器
Amplify analog and digital signals by driving the input to the transmission line with this buffer and line driver from STMicroelectronics. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -55 °C and a maximum of 125 °C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This non-inverting device has a typical operating supply voltage of 2.5|3.3|5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V. It has 6 channels per chip.
电源电压DC 5.00 V, 6.00 V max
输出接口数 6
电路数 6
通道数 6
针脚数 16
位数 6
耗散功率 500 mW
输入数 6
工作温度Max 125 ℃
工作温度Min -55 ℃
耗散功率Max 500 mW
电源电压 2V ~ 6V
电源电压Max 6 V
电源电压Min 2 V
安装方式 Surface Mount
引脚数 16
封装 SOP-16
高度 1.65 mm
封装 SOP-16
工作温度 -55℃ ~ 125℃ TA
产品生命周期 Active
包装方式 Cut Tape CT
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
M74HC365RM13TR ST Microelectronics 意法半导体 | 当前型号 | 当前型号 |
SN74HC365D 德州仪器 | 功能相似 | M74HC365RM13TR和SN74HC365D的区别 |
SN74HC365DR 德州仪器 | 功能相似 | M74HC365RM13TR和SN74HC365DR的区别 |
CD74HC365M 德州仪器 | 功能相似 | M74HC365RM13TR和CD74HC365M的区别 |
