MUN5136T1G

偏置电阻晶体管 Bias Resistor Transistor

PNP Silicon Surface Mount Transistor with Monolithic Bias Resistor Network

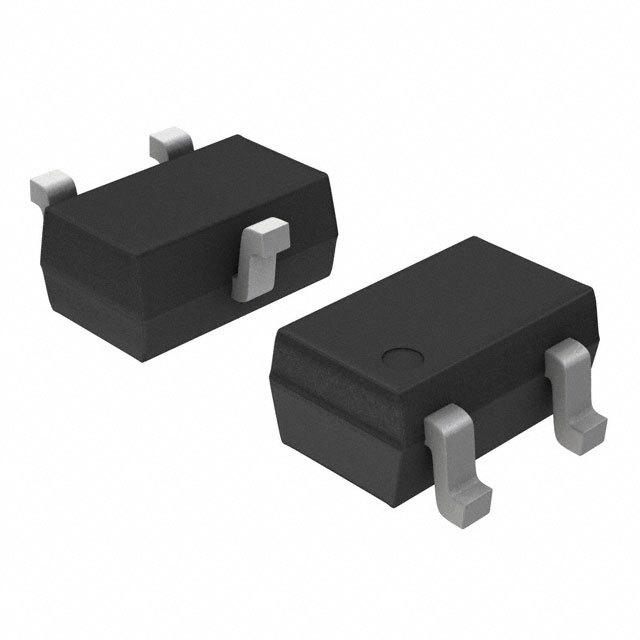

  This new series of digital transistors is designed to replace a single device and its external resistor bias network. The Bias Resistor Transistor BRT contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base−emitter resistor. The BRT eliminates these individual components by integrating them into a single device. The use of a BRT can reduce both system cost and board space. The device is housed in the SC−70/SOT−323 package which is designed for low power surface mount applications.

Features

•Simplifies Circuit Design

•Reduces Board Space

•Reduces Component Count

•The SC−70/SOT−323 package can be soldered using wave or reflow. The modified gull−winged leads absorb thermal stress during soldering eliminating the possibility of damage to the die.

•Available in 8 mm embossed tape and reel − Use the Device Number to order the 7 inch/3000 unit reel. Replace “T1” with “T3” in the Device Number to order the 13 inch/10,000 unit reel.

•Pb−Free Packages are Available
