M2122TCW01

NKK SWITCHES  M2122TCW01  拨动开关, M2100系列, 发光, DPDT, 开-无-开, 面板, 6 A

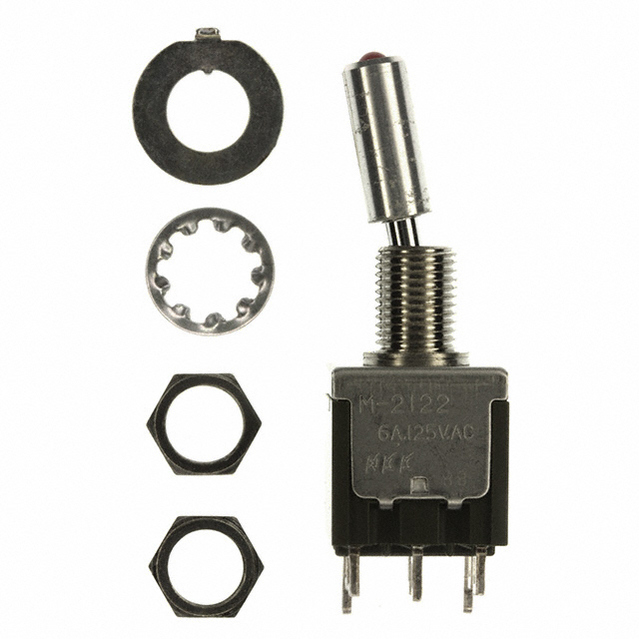

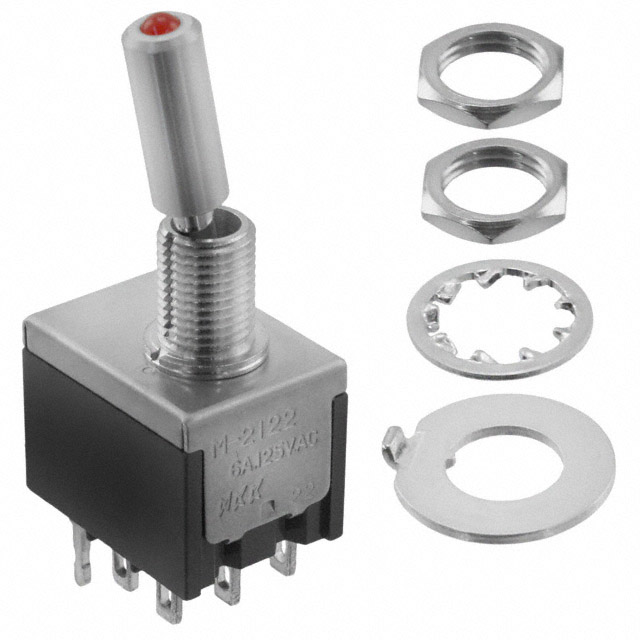

The M2100 series Tipped Toggle Switch has LED illumination at tip of toggle. It is available as single colour LEDs of red, yellow and green, plus bicolour red/green, to meet varied design requirements. The anti-jamming feature is to protect contacts from damage due to excessive downward force on the toggle. High torque bushing prevents the bushing from rotating or separating from the metal frame during installation. It has 1500V dielectric strength between switch contacts and case is accomplished by clinching the frame away from the terminals.

.

LEDs can operate independently from or synchronously with switching operation

.

Stainless steel frame resists corrosion

.

Silver contacts are of specially composed alloy for hardness

.

High insulating barriers protect against crossover in double pole devices

.

Terminals are moulded in and epoxy sealed to lock out flux, dust and other contaminants
