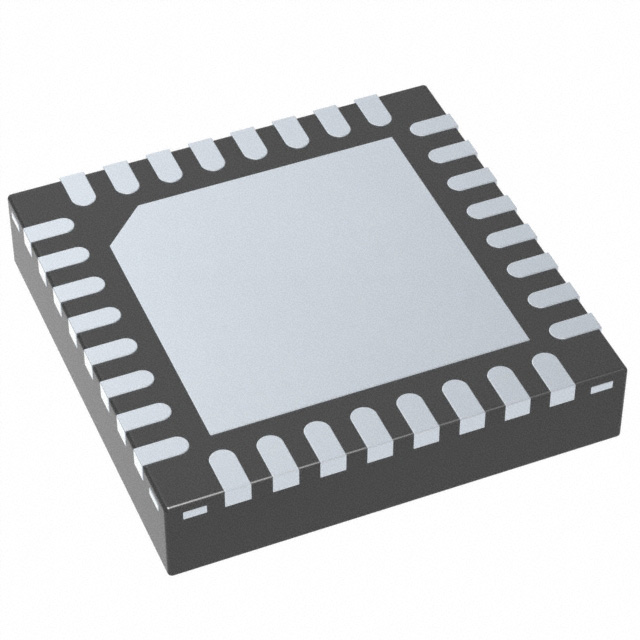

MSP430F2132QRHBTEP

混合信号微控制器 MIXED SIGNAL MICROCONTROLLER

The MSP430F2132 is an ultra-low-power microcontroller. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 1 µs.

The MSP430F2132 has two built-in 16-bit timers, a fast 10-bit A/D converter with integrated reference and a data transfer controller DTC, a comparator, built-in communication capability using the universal serial communication interface, and up to 24 I/O pins.
