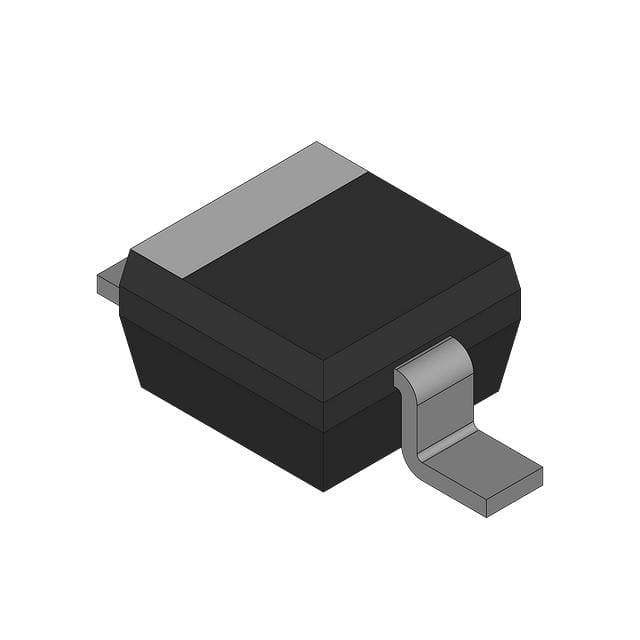

ON SEMICONDUCTOR MBRA130LT3G 肖特基整流器, 单, 30 V, 1 A, DO-214AC, 2 引脚, 410 mV
肖特基势垒,1A 至 2A,
### 标准
带 NSV-、SBR- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
得捷:
DIODE SCHOTTKY 30V 1A SMA
欧时:
### 肖特基势垒二极管,1A 至 2A,ON Semiconductor### 标准Products with NSV-, SBR- or S-prefixed Manufacturer Part Nos are AEC-Q101 automotive qualified.### 二极管和整流器,ON Semiconductor
立创商城:
MBRA130LT3G
艾睿:
Converting from AC to DC is simple when using a Schottky diode MBRA130LT3G rectifier from ON Semiconductor. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. Its peak non-repetitive surge current is 25 A, while its maximum continuous forward current is 1 A. This rectifier has an operating temperature range of -55 °C to 125 °C. It is made in a single configuration.
Allied Electronics:
Diode; Schottky Barrier; Vr 30V; If 1A; Pkg SMA; Vf 0.41V; Tj +125degc; Cs 25A; Ir 25mA
安富利:
Diode Schottky 30V 1A 2-Pin SMA T/R
Chip1Stop:
Diode Schottky 30V 1A Automotive 2-Pin SMA T/R
TME:
Diode: Schottky rectifying; SMD; 30V; 1A; SMA; Package: reel, tape
Verical:
Rectifier Diode Schottky Si 30V 1A 2-Pin SMA T/R
Newark:
# ON SEMICONDUCTOR MBRA130LT3G Schottky Rectifier, 30 V, 1 A, Single, DO-214AC, 2 Pins, 410 mV
Win Source:
DIODE SCHOTTKY 30V 1A SMA
额定电压DC 30.0 V
额定电流 1 A
无卤素状态 Halogen Free
输出电流 1 A
针脚数 2
正向电压 410mV @1A
极性 Standard
热阻 35℃/W RθJL
正向电流 1 A
最大正向浪涌电流(Ifsm) 25 A
正向电压Max 410 mV
正向电流Max 1 A
工作温度Max 125 ℃
工作温度Min -55 ℃
工作结温Max 125 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AC
长度 4.57 mm
宽度 2.6 mm
高度 2 mm
封装 DO-214AC
重量 0.004535924 kg
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Power Management, Automotive, 工业, Industrial, 车用, 电源管理
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBRA130LT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBRS130T3G 安森美 | 类似代替 | MBRA130LT3G和MBRS130T3G的区别 |
MBRS130T3 安森美 | 类似代替 | MBRA130LT3G和MBRS130T3的区别 |
MBRA130LT3 安森美 | 类似代替 | MBRA130LT3G和MBRA130LT3的区别 |
