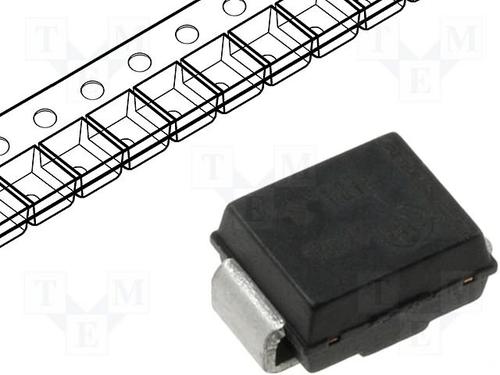

ON SEMICONDUCTOR MBRS130LT3G. 肖特基整流器, 单, 30 V, 1 A, DO-214AA, 2 引脚, 395 mV
与整流器
欧时:
ON Semiconductor 二极管 MBRS130LT3G 肖特基, Io=2A, Vrev=30V, 2引脚 DO-214AA SMB封装
得捷:
DIODE SCHOTTKY 30V 2A SMB
立创商城:
MBRS130LT3G
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode MBRS130LT3G rectifier from ON Semiconductor. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This rectifier has an operating temperature range of -65 °C to 125 °C. It is made in a single configuration. Its peak non-repetitive surge current is 40 A, while its maximum continuous forward current is 2 A.
Allied Electronics:
RECTIFIER, SCHOTTKY; SMB CASE 403A PLASTIC; 1 A @ +120C IF; 0.395 V @ +25C
Jameco:
MBRS130LT3G,@ REC SMB 1A 30V S HTKY TR
安富利:
Diode Schottky 30V 2A 2-Pin SMB T/R
Chip1Stop:
Diode Schottky 30V 2A Automotive 2-Pin SMB T/R
TME:
Diode: Schottky rectifying; SMD; 30V; 1A; SMB; Package: reel, tape
Verical:
Rectifier Diode Schottky Si 30V 2A 2-Pin SMB T/R
Newark:
Schottky Rectifier, 30 V, 2 A, Single, DO-214AA, 2 Pins, 395 mV
Win Source:
DIODE SCHOTTKY 30V 2A SMB
额定电压DC 30.0 V
额定电流 1.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
负载电流 1 A
针脚数 2
正向电压 445mV @2A
极性 Standard
热阻 12℃/W RθJL
正向电流 1 A
最大正向浪涌电流(Ifsm) 40 A
正向电压Max 395 mV
正向电流Max 2 A
工作温度Max 125 ℃
工作温度Min -65 ℃
工作结温Max 125 ℃
安装方式 Surface Mount
引脚数 2
封装 DO-214AA
长度 4.6 mm
宽度 3.56 mm
高度 2.13 mm
封装 DO-214AA
材质 Silicon
工作温度 -65℃ ~ 125℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 车用, 电源管理, 工业, Power Management, Safety, Automotive, 消费电子产品, 便携式器材, Power Management
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2014/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBRS130LT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBRS130L 安森美 | 类似代替 | MBRS130LT3G和MBRS130L的区别 |
MBRS130LT3 安森美 | 类似代替 | MBRS130LT3G和MBRS130LT3的区别 |
B130LB-13-F 美台 | 功能相似 | MBRS130LT3G和B130LB-13-F的区别 |
