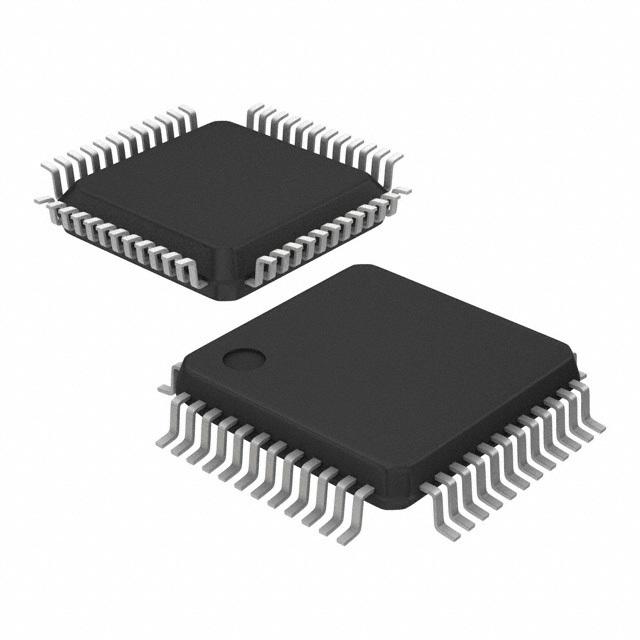

TEXAS INSTRUMENTS MSP430F1471IPM 微控制器, 16位, MSP430F1xx, 8 MHz, 32 KB, 1 KB, 64 引脚, LQFP
The Texas Instruments MSP430 family of ultralow-power microcontrollers consist of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low power modes is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that attribute to maximum code efficiency. The digitally controlled oscillator DCO allows wake-up from low-power modes to active mode in less than 6 µs.
The MSP430x13x and the MSP430x14x1 series are microcontroller configurations with two built-in 16-bit timers, a fast 12-bit A/D converter not implemented on the MSP430F14x1 devices, one or two universal serial synchronous/asynchronous communication interfaces USART, and 48 I/O pins.
Typical applications include sensor systems that capture analog signals, convert them to digital values, and process and transmit the data to a host system. The timers make the configurations ideal for industrial control applications such as ripple counters, digital motor control, EE-meters, hand-held meters, etc. The hardware multiplier enhances the performance and offers a broad code and hardware-compatible family solution.
频率 8 MHz
电源电压DC 3.30 V, 3.60 V max
针脚数 64
时钟频率 8.00 MHz
RAM大小 1 KB
位数 16
FLASH内存容量 32 KB
I/O引脚数 48
存取时间 8.00 µs
内核架构 MSP430
UART数量 2
模数转换数ADC 1
FRAM内存容量 0 B
输入/输出数 48 Input
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压Max 3.6 V
电源电压Min 1.8 V
安装方式 Surface Mount
引脚数 64
封装 LQFP-64
长度 10 mm
宽度 10 mm
高度 1.4 mm
封装 LQFP-64
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
ECCN代码 EAR99
