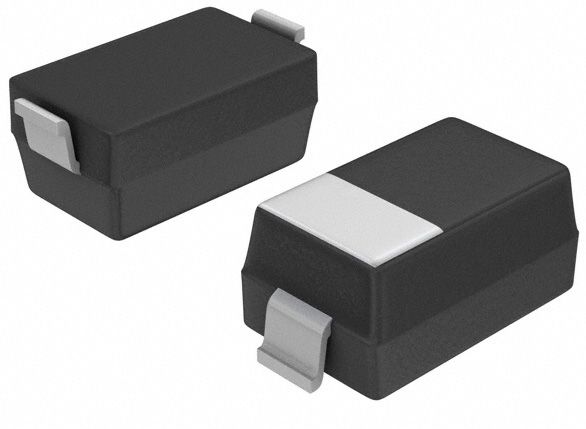

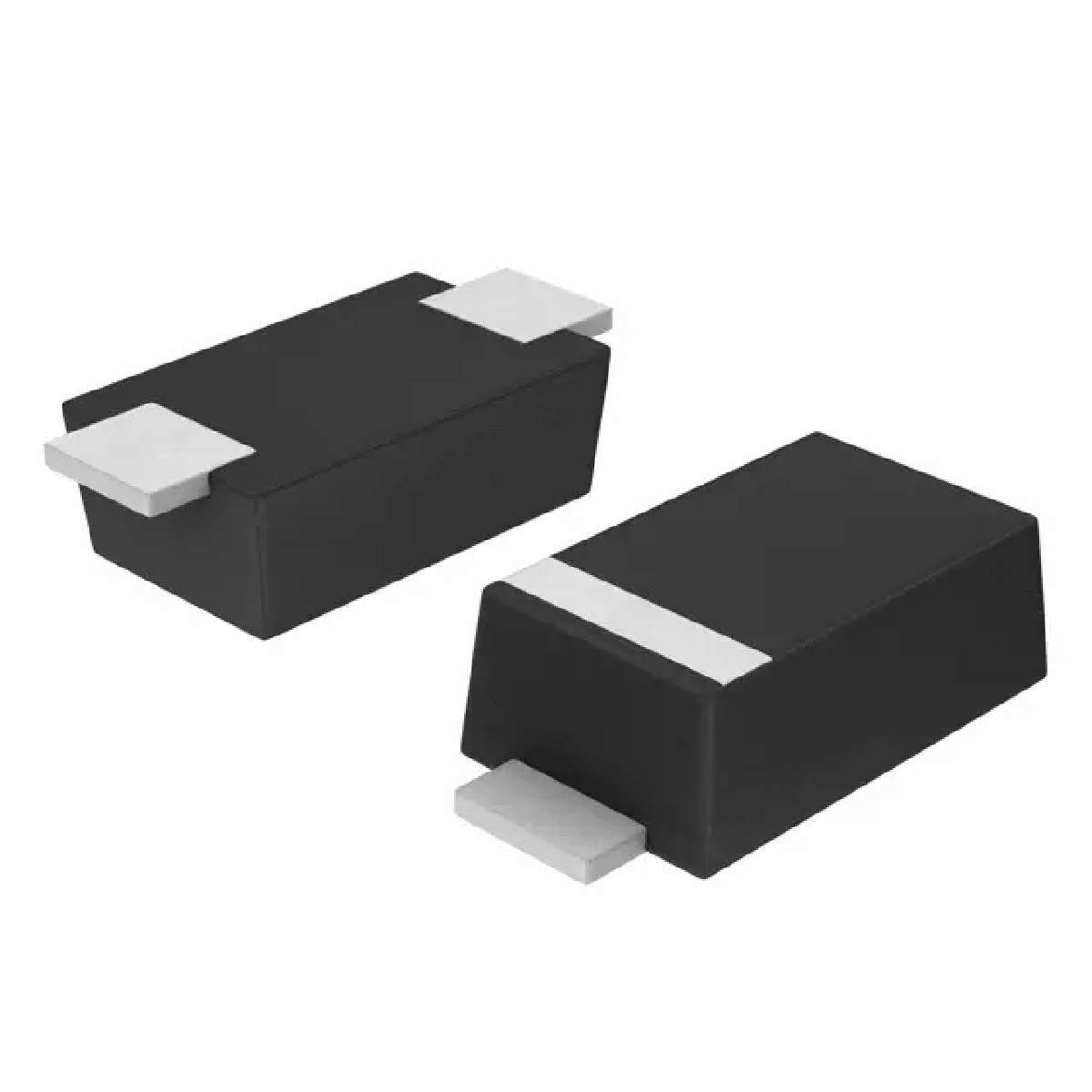

表面贴装肖特基整流电源 Surface Mount Schottky Power Rectifier
Diode Schottky 20V 1A Surface Mount SOD-123FL
得捷:
DIODE SCHOTTKY 20V 1A SOD123FL
立创商城:
MBR120ESFT3G
贸泽:
Schottky Diodes & Rectifiers 1A 20V
e络盟:
肖特基整流二极管, AEC-Q101, 20V, SOD123FL
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode MBR120ESFT3G rectifier from ON Semiconductor. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This rectifier has an operating temperature range of -65 °C to 150 °C. Its peak non-repetitive surge current is 40 A, while its maximum continuous forward current is 1 A. It is made in a single configuration.
安富利:
Diode Schottky 20V 1A 2-Pin SOD-123FL T/R
Chip1Stop:
Diode Schottky 20V 1A Automotive 2-Pin SOD-123FL T/R
Verical:
Rectifier Diode Schottky 20V 1A 2-Pin SOD-123FL T/R
Win Source:
DIODE SCHOTTKY 20V 1A SOD123L
额定电压DC 20.0 V
额定电流 1.00 A
无卤素状态 Halogen Free
输出电流 ≤1.00 A
针脚数 2
正向电压 0.595 V
极性 Standard
正向电流 1 A
最大正向浪涌电流(Ifsm) 40 A
正向电压Max 530mV @1A
正向电流Max 1000 mA
工作温度Max 150 ℃
工作温度Min 65 ℃
安装方式 Surface Mount
引脚数 2
封装 SOD-123-2
长度 2.7 mm
宽度 1.65 mm
高度 0.9 mm
封装 SOD-123-2
工作温度 65℃ ~ 150℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBR120ESFT3G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBR120ESFT1G 安森美 | 类似代替 | MBR120ESFT3G和MBR120ESFT1G的区别 |
MBR120ESFT1 安森美 | 功能相似 | MBR120ESFT3G和MBR120ESFT1的区别 |
MBR120ESFT3 安森美 | 功能相似 | MBR120ESFT3G和MBR120ESFT3的区别 |
