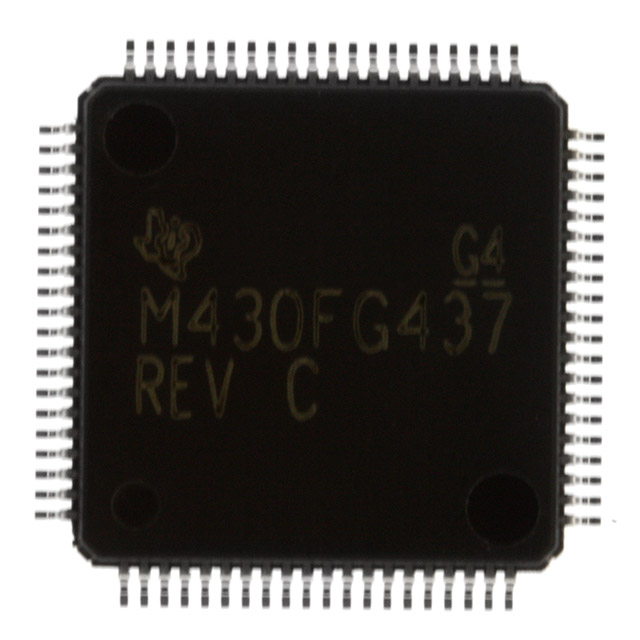

混合信号微控制器 MIXED SIGNAL MICROCONTROLLER
The Texas Instruments MSP430 family of ultra-low-power microcontrollers consists of several devices featuring different sets of peripherals targeted for various applications. The architecture, combined with five low-power modes, is optimized to achieve extended battery life in portable measurement applications. The device features a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code efficiency. The digitally controlled oscillator DCO allows the device to wake up from low-power modes to active mode in less than 6 µs.
The MSP430FG43x devices are microcontrollers with two 16-bit timers, a high-performance 12-bit ADC, dual 12-bit DACs, three configurable operational amplifiers, one universal synchronous/asynchronous communication interface, DMA, 48 I/O pins, and an LCD driver.
频率 8 MHz
电源电压DC 3.30 V, 3.60 V max
时钟频率 8.00 MHz
RAM大小 1K x 8
位数 16
FLASH内存容量 32 KB
I/O引脚数 48
存取时间 8.00 µs
内核架构 RISC
UART数量 1
模数转换数ADC 1
FRAM内存容量 0 B
工作温度Max 85 ℃
工作温度Min -40 ℃
数模转换数DAC 1
安装方式 Surface Mount
引脚数 80
封装 LQFP-80
长度 12 mm
宽度 12 mm
高度 1.4 mm
封装 LQFP-80
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MSP430FG437IPNR TI 德州仪器 | 当前型号 | 当前型号 |
MSP430FG437IPN 德州仪器 | 类似代替 | MSP430FG437IPNR和MSP430FG437IPN的区别 |
