16位微控制器 - MCU MCU 3/5V 0K I-temp Pb-Free 100-LQFP
M16C/60 series IC 16 位 24MHz ROMless 100-LFQFP（14x14）
立创商城:
其他系列 24MHz RAM：10KB
得捷:
IC MCU 16BIT ROMLESS 100LFQFP
贸泽:
16位微控制器 - MCU MCU 3/5V 0K I-temp Pb-Free 100-LQFP
艾睿:
Renesas&s; M30620SPGP#U3C microcontroller can essentially eliminate certain components and speed up simple tasks within your circuit. This microcontroller has an operating temperature range of -40 °C to 85 °C. It has a maximum clock speed of 24 MHz. This is a 16 bit processor. This device has a typical operating supply voltage of 3.3|5 V. Its minimum operating supply voltage of 3 V, while its maximum is 5.5 V. Its ADC resolution is 10, while its DAC resolution is 8. It has romless program memory.
Chip1Stop:
MCU 16-Bit/32-Bit M16C CISC ROMLess 3.3V/5V 100-Pin LQFP
儒卓力:
**M16C ROMLESS QFP100 85°C **
DeviceMart:
IC M16C MCU ROMLESS 100LQFP
电源电压DC 5.00 V, 5.50 V max
时钟频率 24.0 MHz, 24.0 MHz max
RAM大小 10K x 8
位数 16
I/O引脚数 87
存取时间 24.0 µs
模数转换数ADC 1
工作温度Max 85 ℃
工作温度Min -40 ℃
耗散功率Max 300 mW
数模转换数DAC 1
安装方式 Surface Mount
引脚数 100

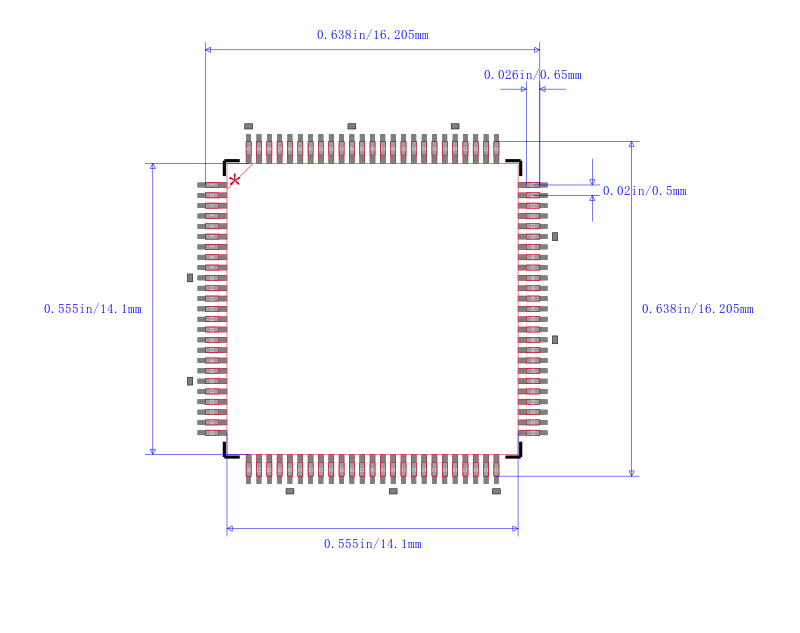

封装 LQFP-100
封装 LQFP-100
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Unknown
包装方式 Tray
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
