ON SEMICONDUCTOR MBR340RLG 肖特基整流器, 单, 40 V, 3 A, DO-201AD, 2 引脚, 850 mV

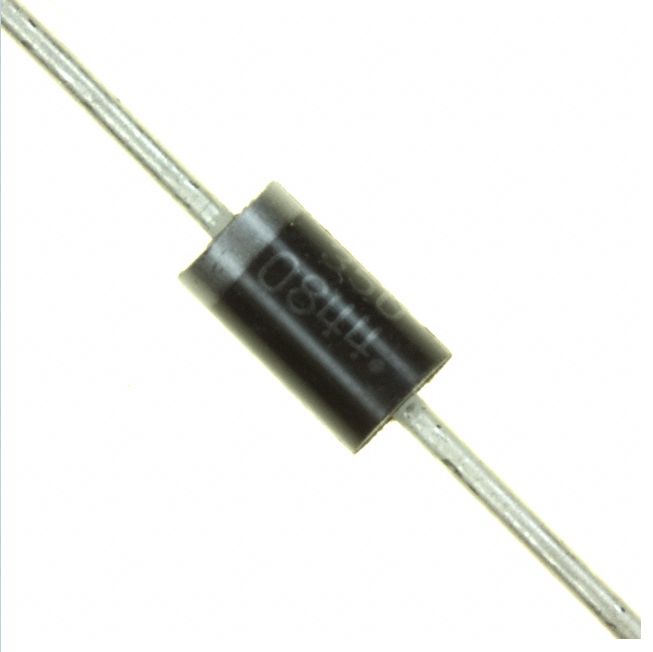

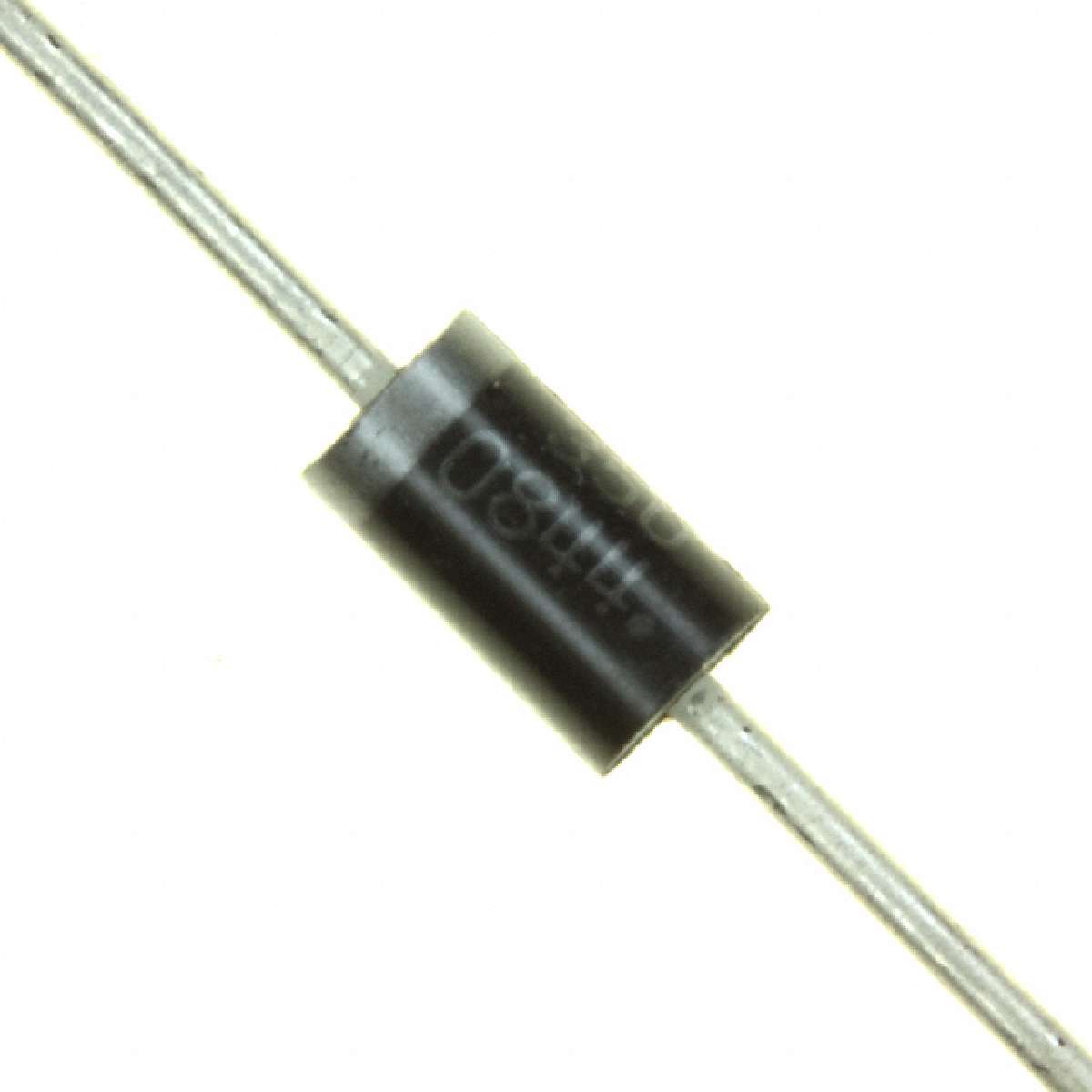

The is an axial-lead Schottky Rectifier with epoxy moulded case. It employs the Schottky barrier principle in a large area metal-to-silicon power diode. The state-of-the-art geometry features epitaxial construction with oxide passivation and metal overlap contact. It is ideally suited for use as rectifiers in low-voltage, high-frequency inverters, free-wheeling diodes and polarity protection diodes.
额定电压DC 40.0 V
额定电流 3.00 A
无卤素状态 Halogen Free
输出电流 ≤3.00 A
针脚数 2
正向电压 600mV @3A
极性 Standard
热阻 28℃/W RθJA
正向电流 3 A
最大正向浪涌电流(Ifsm) 80 A
正向电压Max 850 mV
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Through Hole
引脚数 2
封装 DO-201AD
长度 9.5 mm
宽度 5.3 mm
高度 5.3 mm
封装 DO-201AD
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Tape & Reel TR
制造应用 Industrial, 电源管理, Power Management, 工业
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MBR340RLG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBR340RL 安森美 | 完全替代 | MBR340RLG和MBR340RL的区别 |
1N5822RLG 安森美 | 类似代替 | MBR340RLG和1N5822RLG的区别 |
1N5822G 安森美 | 类似代替 | MBR340RLG和1N5822G的区别 |
