MC74LVX4052DTG

双四选一多路复用模拟开关

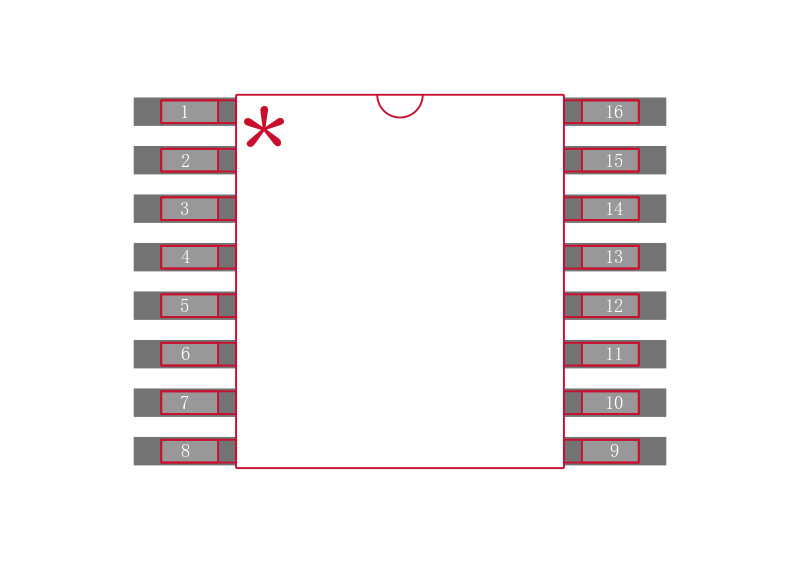

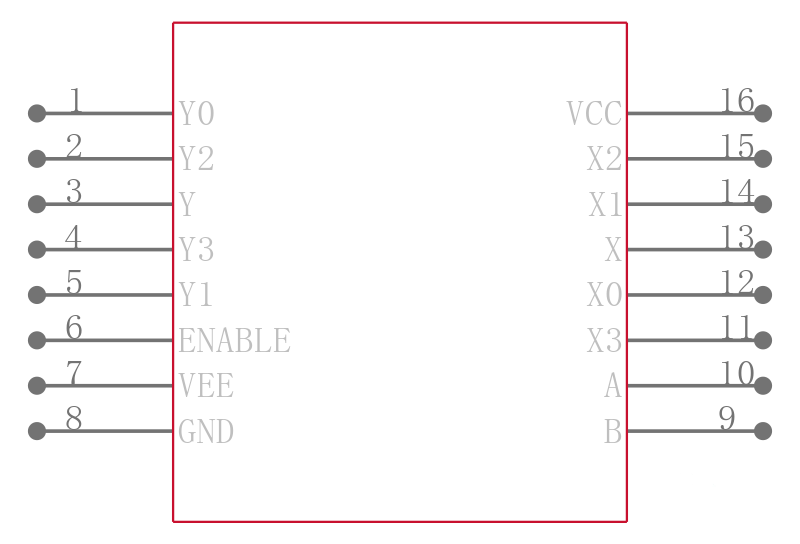

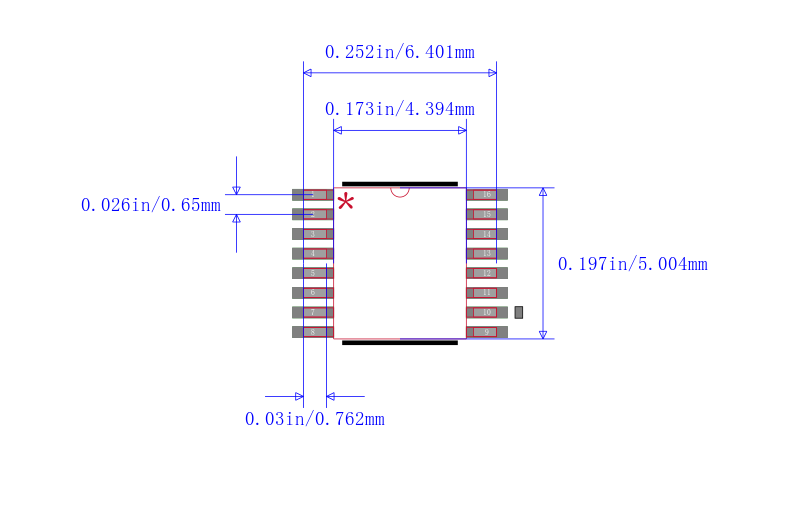

The MC74LVX4052 utilizes silicon-gate CMOS technology to achieve fast propagation delays, low ON resistances, and low OFF leakage currents. This analog multiplexer/demultiplexer controls analog voltages that may vary across the complete power supply range from V The LVX4052 is similar in pinout to the high-speed HC4052A, and the metal-gate MC14052B. The Channel-Select inputs determine which one of the Analog Inputs/Outputs is to be connected, by means of an analog switch, to the Common Output/Input. When the Enable pin is HIGH, all analog switches are turned off. The Channel-Select and Enable inputs are compatible with standard CMOS outputs; with pull-up resistors they are compatible with LSTTL outputs. This device has been designed so that the ON resistance R is more linear over input voltage than R on of metal-gate CMOS analog switches.

Features

---

 |

.

Fast Switching and Propagation Speeds

.

Low Crosstalk Between Switches

.

Analog Power Supply Range VCC \- GND = 2.0 to 6.0 V

.

Digital Control Power Supply Range VCC \- GND = 2.0 to 6.0 V

.

Improved Linearity and Lower ON Resistance Than Metal-Gate, HSL, or VHC Counterparts

.

Low Noise

.

Designed to Operate on a Single Supply with VEE = GND, or Using Split Supplies up to +/- 3.3 V

.

Pb-Free Packages are Available*
