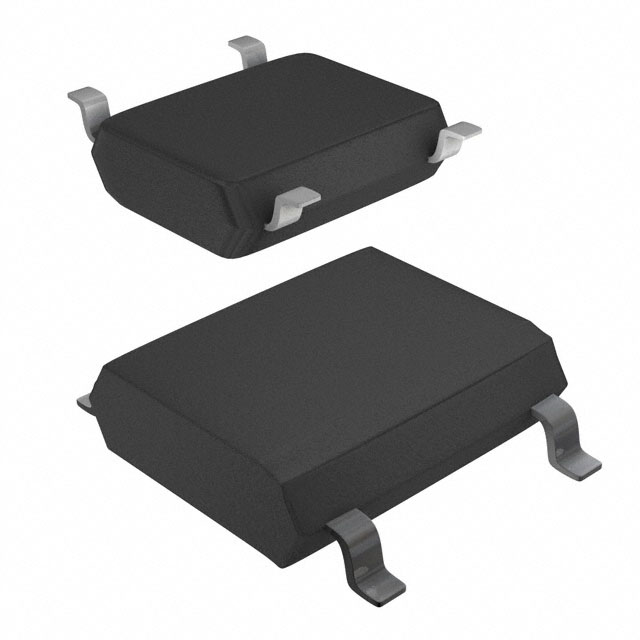

Diode Rectifier Bridge Single 800V 1A 4Pin Case MBLS T/R
Bridge Rectifier Single Phase Standard 800V Surface Mount 4-SMD
得捷: BRIDGE RECT 1PHASE 800V 1A 4SMD
艾睿: Diode Rectifier Bridge Single 800V 1A 4-Pin Case MBLS T/R
正向电压 950mV @400mA
正向电流 1 A
最大正向浪涌电流(Ifsm) 30 A
工作温度Max 150 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
引脚数 4
封装 SMD-4
长度 5.3 mm
宽度 4.6 mm
高度 1.5 mm
工作温度 -55℃ ~ 150℃ TJ
产品生命周期 Obsolete
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
