MMBZ15VDLT3G

40瓦峰值功率齐纳瞬态电压抑制器 40 Watt Peak Power Zener Transient Voltage Suppressors

40 Watt Peak Power Zener Transient Voltage Suppressors

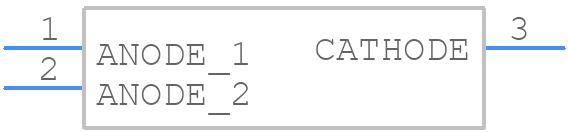

SOT−23 Dual Common Cathode Zeners for ESD Protection

These dual monolithic silicon zener diodes are designed for applications requiring transient overvoltage protection capability. They are intended for use in voltage and ESD sensitive equipment such as computers, printers, business machines, communication systems, medical equipment and other applications. Their dual junction common cathode design protects two separate lines using only one package. These devices are ideal for situations where board space is at a premium.

Specification Features:

•SOT−23 Package Allows Either Two Separate Unidirectional Configurations or a Single Bidirectional Configuration

•Working Peak Reverse Voltage Range − 12.8 V, 22 V

•Standard Zener Breakdown Voltage Range − 15 V, 27 V

•Peak Power − 40 W @ 1.0 ms Bidirectional, per Figure 5 Waveform

•ESD Rating of Class N exceeding 16 kV per the Human Body Model

•Low Leakage < 100 nA

•Flammability Rating: UL 94 V−O

•Pb−Free Packages are Available
