MOV-07D301K概述

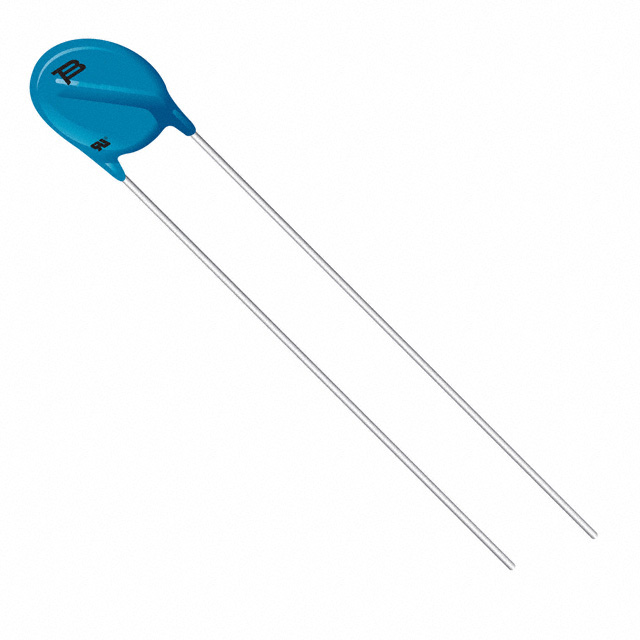

金属氧化物变阻器 Metal Oxide Varistor

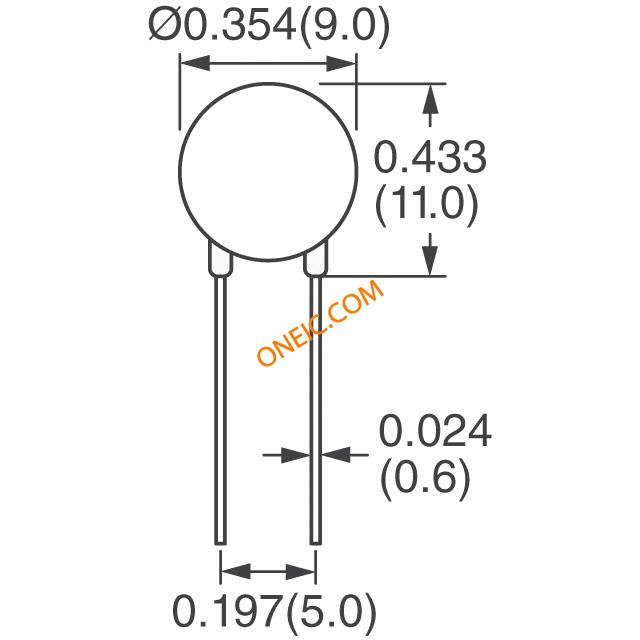

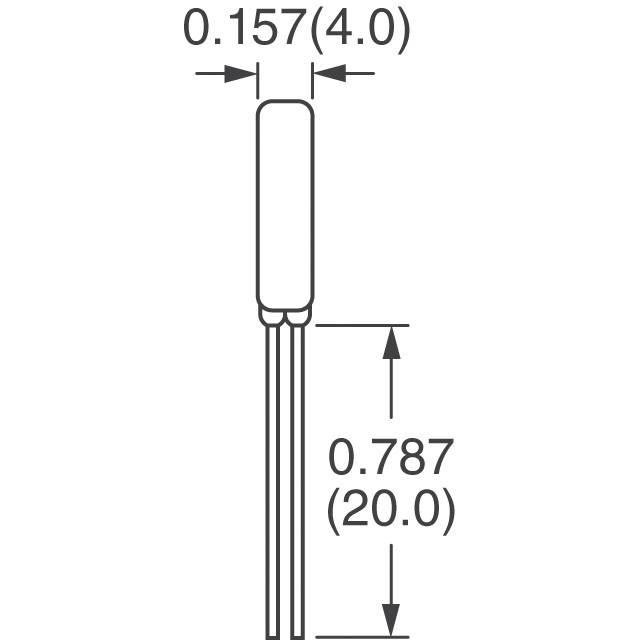

Provide proper variable resistance to your circuit by using this MOV from Bourns. This part has a pitch of 5 mm. Its maximum surge current is 1200 A. This device"s clamping current is 10 A and clamping voltage is 500 V. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This product is 11 mm tall and 4 mm deep with a diameter of 9 mm. This device is made with metal oxide technology. The maximum AC voltage rating is 190 VAC and the maximum DC voltage rating is 250 VDC. Its tolerance voltage is 10%. Its capacitance value is 165pF. This varistor has a voltage of 300 V.

MOV-07D301K中文资料参数规格
技术参数

电容 165 pF

容差 10 %

电路数 1

钳位电压 250 V

工作温度Max 85 ℃

工作温度Min -40 ℃

额定电压DC Max 250 V

额定电压AC Max 190 V

封装参数

安装方式 Through Hole

封装 Disc 7mm

外形尺寸

宽度 6.8 mm

高度 11 mm

封装 Disc 7mm

物理参数

工作温度 -40℃ ~ 85℃

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

数据手册

在线购买MOV-07D301K
型号: MOV-07D301K
制造商: Bourns J.W. Miller 伯恩斯
描述:金属氧化物变阻器 Metal Oxide Varistor
替代型号MOV-07D301K
型号/品牌 代替类型 替代型号对比

MOV-07D301K

Bourns J.W. Miller 伯恩斯

当前型号

当前型号

MOV-07D301KTR

伯恩斯

完全替代

MOV-07D301K和MOV-07D301KTR的区别
