BOURNS MOV-07D361KTR VARISTOR, METAL OXIDE, 595V, DISC 7MM 新
变阻器 电路 通孔 圆片式 7mm
得捷:
VARISTOR 360V 1.2KA DISC 7MM
立创商城:
MOV-07D361KTR
e络盟:
压敏变阻器, 金属氧化物, 595V, DISC 7MM
艾睿:

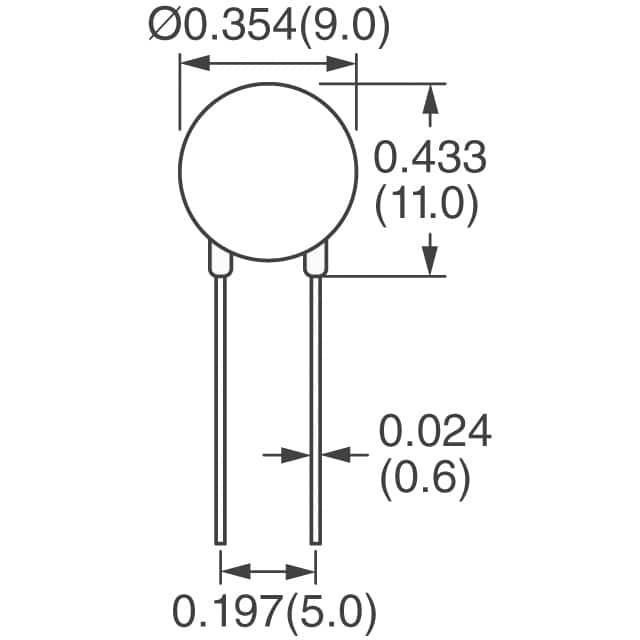

Apply different voltages to this MOV-07D361KTR MOV from Bourns in order to change resistance of it. This device&s;s clamping current is 10 A and clamping voltage is 595 V. This part has a pitch of 5 mm. Its maximum surge current is 1200 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product will be shipped in tape and reel packaging for quick mounting and safe delivery. Its capacitance value is 140pF. This device utilizes metal oxide technology. This varistor has a voltage of 360 V. This product is 11 mm tall and 4.4 mm deep with a diameter of 9 mm. Its tolerance voltage is 10%. The maximum AC voltage rating is 230 VAC and the maximum DC voltage rating is 300 VDC.
安富利:
Var MOV 230VAC/300VDC 1200A 360V Radial T/R
Chip1Stop:
Var MOV 230VAC/300VDC 1200A 360V Thru-Hole Radial T/R
Verical:
Var MOV 230VAC/300VDC 1200A 360V Thru-Hole Radial T/R
Newark:
# BOURNS MOV-07D361KTR TVS Varistor, 230 V, 300 V, MOV-07DxxxK Series, 595 V, Disc 7mm, Metal Oxide Varistor MOV
Electro Sonic:
Var MOV 230VAC/300VDC 1200A 360V Thru-Hole Radial T/R
额定电压DC 300 V
额定电压AC 230 V
电容 140 pF
电路数 1
钳位电压 595 V
工作温度Max 85 ℃
工作温度Min -40 ℃
额定电压DC Max 300 V
额定电压AC Max 230 V
安装方式 Through Hole
封装 Disc 7mm
宽度 4.4 mm
高度 11 mm
封装 Disc 7mm
工作温度 -40℃ ~ 85℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2016/06/20
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MOV-07D361KTR Bourns J.W. Miller 伯恩斯 | 当前型号 | 当前型号 |
MOV-07D361K 伯恩斯 | 完全替代 | MOV-07D361KTR和MOV-07D361K的区别 |
