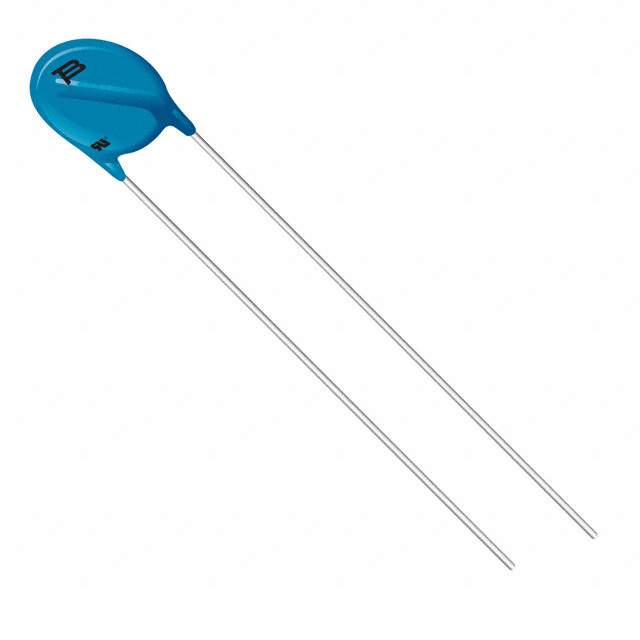

MOV-07D511K

金属氧化物变阻器 Metal Oxide Varistor

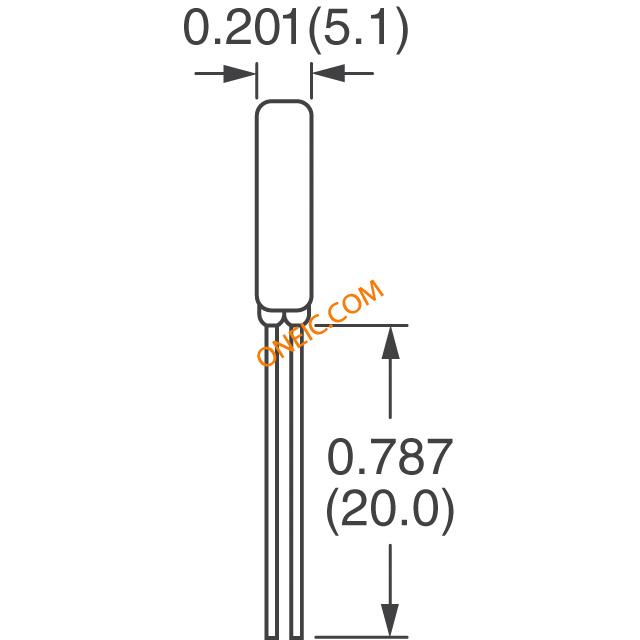

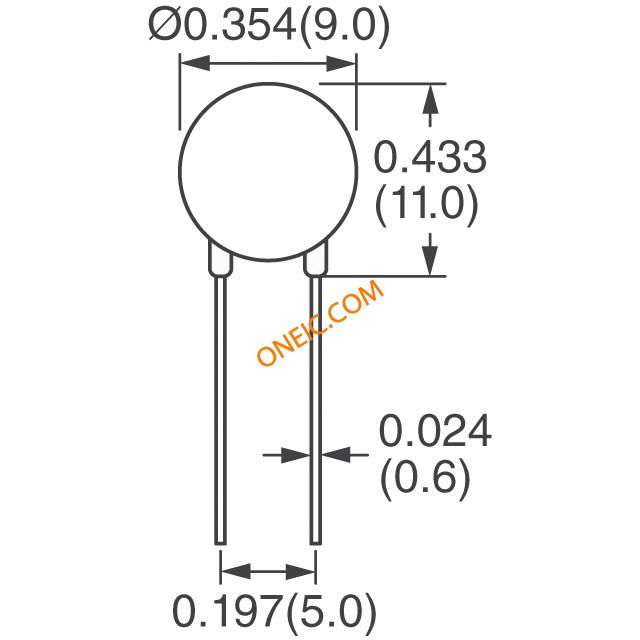

Have complete control of resistance in a voltage applied circuit by using this MOV developed by Bourns. This part has a pitch of 5 mm. This device"s clamping current is 10 A and clamping voltage is 845 V. Its maximum surge current is 1200 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 510 V. This device is made with metal oxide technology. This product is 11 mm tall and 5.1 mm deep with a diameter of 9 mm. Its tolerance voltage is 10%. The maximum AC voltage rating is 320 VAC and the maximum DC voltage rating is 415 VDC. Its capacitance value is 100pF.
