MOV-07D201KTR

BOURNS  MOV-07D201KTR  VARISTOR, METAL OXIDE, 340V, DISC 7MM 新

Var MOV 130VAC/170VDC 1200A 200V Radial T/R

得捷:
VARISTOR 200V 1.2KA DISC 7MM

立创商城:
MOV 07D201KTR

贸泽:
Varistors 250pF 200volts 10%

e络盟:
压敏变阻器, 金属氧化物, 340V, DISC 7MM

艾睿:

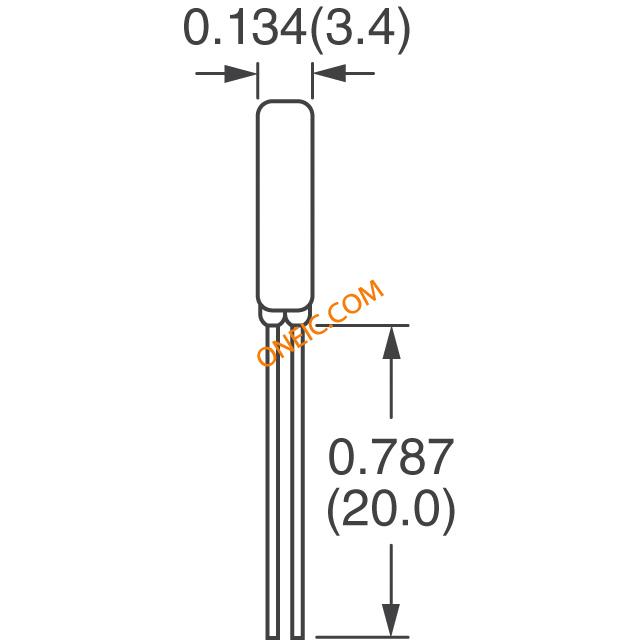

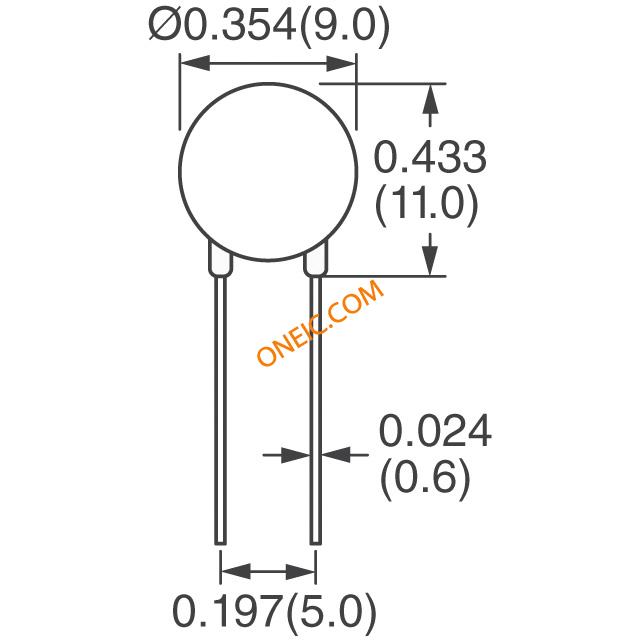

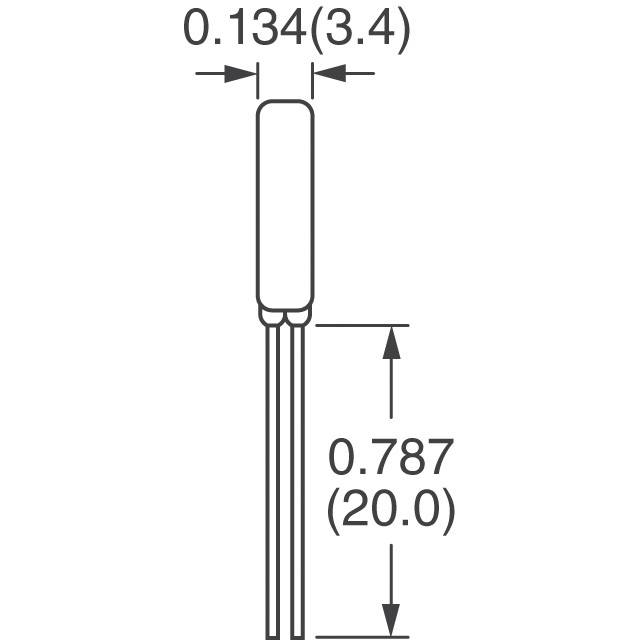

This MOV-07D201KTR MOV from Bourns is a nonlinear resistor, the resistance of it will change when different voltages are applied to it. This device&s;s clamping current is 10 A and clamping voltage is 340 V. Its maximum surge current is 1200 A. This part has a pitch of 5 mm. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. Its tolerance voltage is 10%. The maximum AC voltage rating is 130 VAC and the maximum DC voltage rating is 170 VDC. This varistor has a voltage of 200 V. This product is 11 mm tall and 3.4 mm deep with a diameter of 9 mm. Its capacitance value is 250pF. This device utilizes metal oxide technology.

安富利:
Var MOV 130VAC/170VDC 1200A 200V Radial T/R

Chip1Stop:
Var MOV 130VAC/170VDC 1200A 200V Radial T/R

Verical:
Var MOV 130VAC/170VDC 1200A 200V Thru-Hole Radial T/R

Newark:
# BOURNS  MOV-07D201KTR  TVS Varistor, 130 V, 170 V, MOV-07DxxxK Series, 340 V, Disc 7mm, Metal Oxide Varistor MOV

MASTER:
Var MOV 130VAC/170VDC 1200A 200V Thru-Hole Radial T/R

Electro Sonic:
Var MOV 130VAC/170VDC 1200A 200V Thru-Hole Radial T/R
