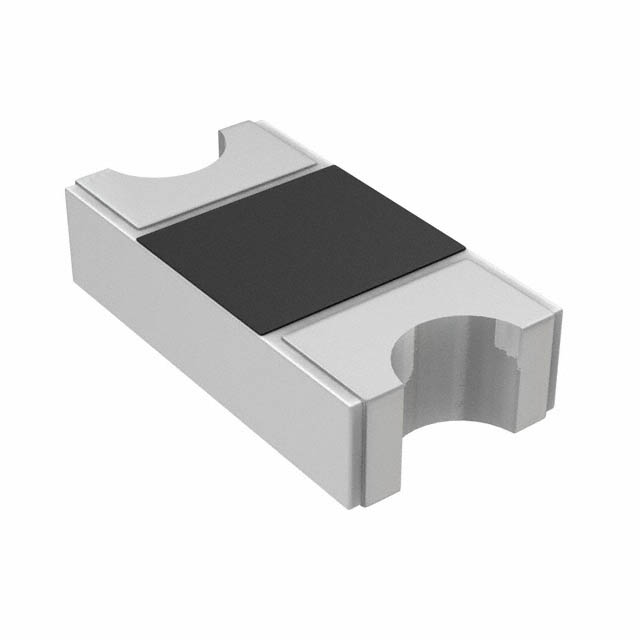

ESD Suppressor Polymer 24V 2Pin Case 0603 T/R
Protect users and systems from electrostatic discharge with this polymer ESD protection device from . This device"s maximum clamping voltage is 36Typ V. This ESD diode has a maximum ESD protection device voltage of 25@Air Gap/15@Contact Disc kV. This ESD diode has an operating temperature range of -40 °C to 90 °C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. It is made in a single configuration. Its capacitance value is 0.3 pF.
工作电压 24 V
电容 0.3 pF
电路数 1
通道数 1
钳位电压 36 V
工作温度Max 90 ℃
工作温度Min -40 ℃
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603
长度 1.6 mm
宽度 0.8 mm
高度 0.43 mm
封装公制 1608
封装 0603
工作温度 -40℃ ~ 90℃ TA
产品生命周期 Active
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
