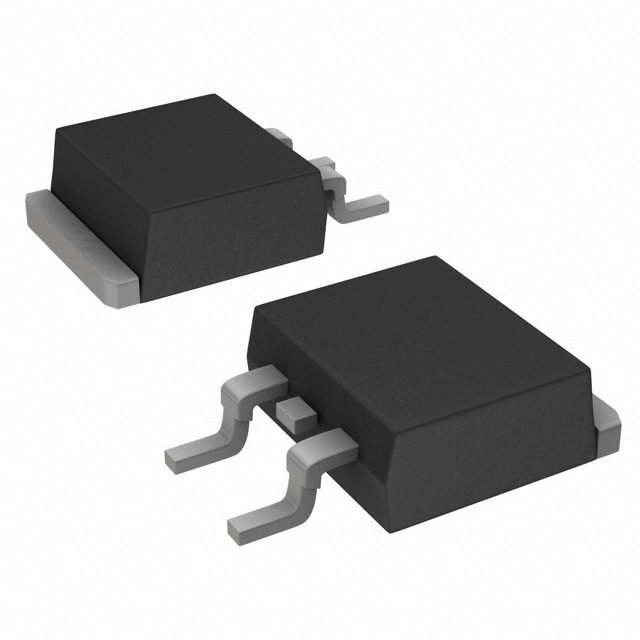

ON SEMICONDUCTOR MURB1620CTT4G 快速/超快二极管, 双共阴极, 200 V, 8 A, 975 mV, 35 ns, 100 A
整流器,10A 至 30A,
### 标准
带 NSV- 或 S- 前缀的制造商部件号符合 AEC-Q101 汽车等级。
立创商城:
MURB1620CTT4G
得捷:
DIODE ARRAY GP 200V 8A D2PAK
欧时:
ON Semiconductor 二极管 MURB1620CTT4G 开关, Io=16A, Vrev=200V, 35ns, 3引脚 D2PAK TO-263封装
贸泽:
整流器 200V 16A Ultrafast Common Cathode
e络盟:
快速/超快二极管, 200 V, 8 A, 双共阴极, 975 mV, 35 ns, 100 A
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a switching diode MURB1620CTT4G rectifier from ON Semiconductor. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This rectifier has a minimum operating temperature of -65 °C and a maximum of 175 °C. Its peak non-repetitive surge current is 100 A, while its maximum continuous forward current is 16 A. It is made in a dual common cathode configuration.
Allied Electronics:
Diode Rectifier 200V 16A 35ns D2PAK
安富利:
Diode Switching 200V 16A 3-Pin2+Tab D2PAK T/R
Chip1Stop:
Diode Switching 200V 16A 3-Pin2+Tab D2PAK T/R
Verical:
Rectifier Diode Switching 200V 16A 35ns 3-Pin2+Tab D2PAK T/R
Newark:
# ON SEMICONDUCTOR MURB1620CTT4G Fast / Ultrafast Diode, 200 V, 8 A, Dual Common Cathode, 975 mV, 35 ns, 100 A
Win Source:
DIODE ARRAY GP 200V 8A D2PAK
额定电压DC 200 V
额定电流 16.0 A
无卤素状态 Halogen Free
正向电压 0.975 V
热阻 50 ℃/W
反向恢复时间 35 ns
正向电流 8 A
最大正向浪涌电流(Ifsm) 100 A
正向电压Max 975 mV
正向电流Max 16 A
工作温度Max 175 ℃
工作温度Min -65 ℃
安装方式 Surface Mount
引脚数 3
封装 TO-263-3
长度 10.29 mm
宽度 9.65 mm
高度 4.83 mm
封装 TO-263-3
工作温度 -65℃ ~ 175℃
产品生命周期 Active
包装方式 Cut Tape CT
制造应用 Power Management, 电源管理, 工业, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MURB1620CTT4G ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MURB1620CTRT4G 安森美 | 类似代替 | MURB1620CTT4G和MURB1620CTRT4G的区别 |
MBRB20200CTG 安森美 | 类似代替 | MURB1620CTT4G和MBRB20200CTG的区别 |
MURB1620CTG 安森美 | 类似代替 | MURB1620CTT4G和MURB1620CTG的区别 |
