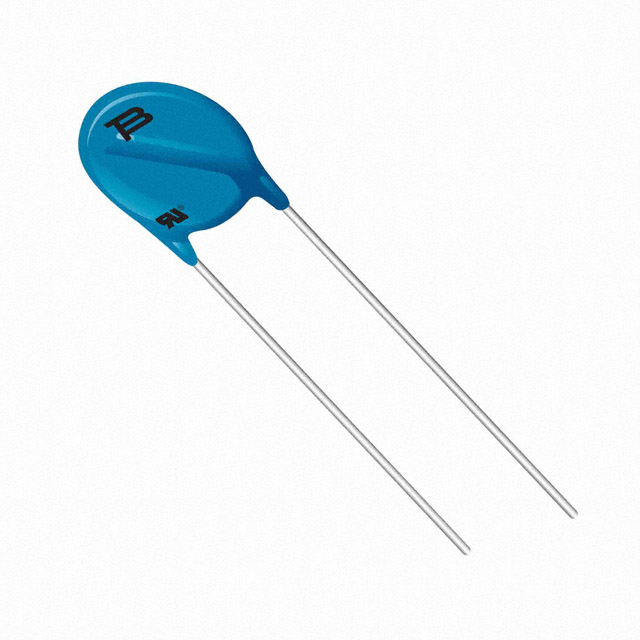

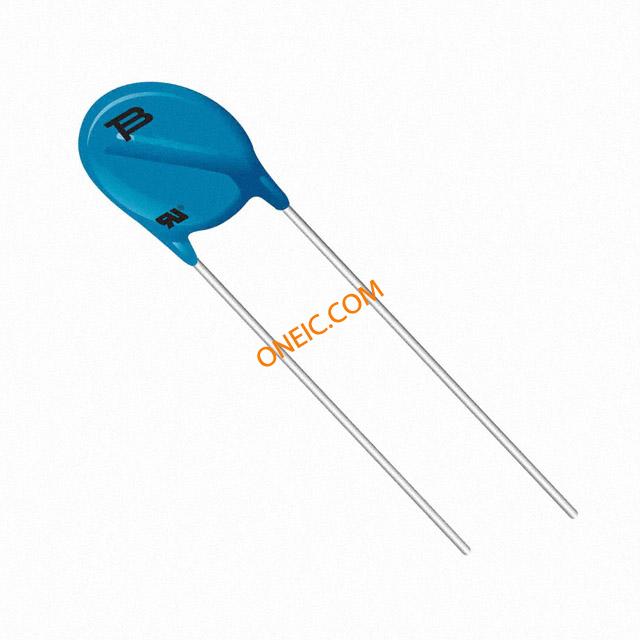

MOV-10D820KTR

RESISTOR, VOLTAGE DEPENDENT, 65V, 12J, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Var MOV 50VAC/65VDC 2500A 82V Radial T/R

立创商城:
MOV 10D820KTR

得捷:
VARISTOR 82V 2.5KA DISC 10MM

艾睿:

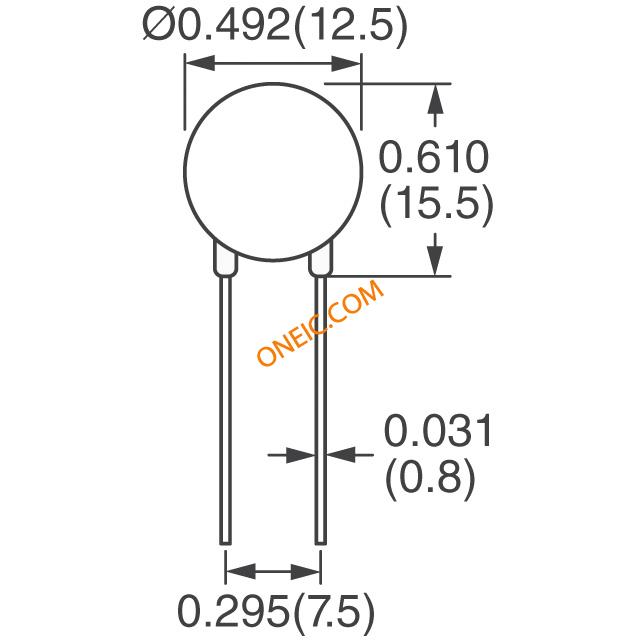

Look no further, this MOV-10D820KTR MOV from Bourns is a variable resistor. This device&s;s clamping current is 25 A and clamping voltage is 135 V. This part has a pitch of 7.5 mm. Its maximum surge current is 2500 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This varistor has a voltage of 82 V. This product is 15.5 mm tall and 7.2 mm deep with a diameter of 12.5 mm. The maximum AC voltage rating is 50 VAC and the maximum DC voltage rating is 65 VDC. Its capacitance value is 0.0012uF. This device is made with metal oxide technology. Its tolerance voltage is 10%.

安富利:
Var MOV 50VAC/65VDC 2500A 82V Radial T/R

Chip1Stop:
Var MOV 50VAC/65VDC 2500A 82V Radial T/R

Verical:
Var MOV 50VAC/65VDC 2500A 82V Thru-Hole Radial T/R

MASTER:
Var MOV 50VAC/65VDC 2500A 82V Thru-Hole Radial T/R

Win Source:
VARISTOR 82V 2.5KA DISC 10MM

Electro Sonic:
Var MOV 50VAC/65VDC 2500A 82V Thru-Hole Radial T/R
