MOV-10D561K

MOV - 10DxxxK系列 - 金属氧化物压敏电阻 MOV-10DxxxK Series - Metal Oxide Varistor

560 V 2.5 kA 变阻器 1 电路 通孔 圆片式 10mm

得捷:
VARISTOR 560V 2.5KA DISC 10MM

立创商城:
MOV-10D561K

艾睿:

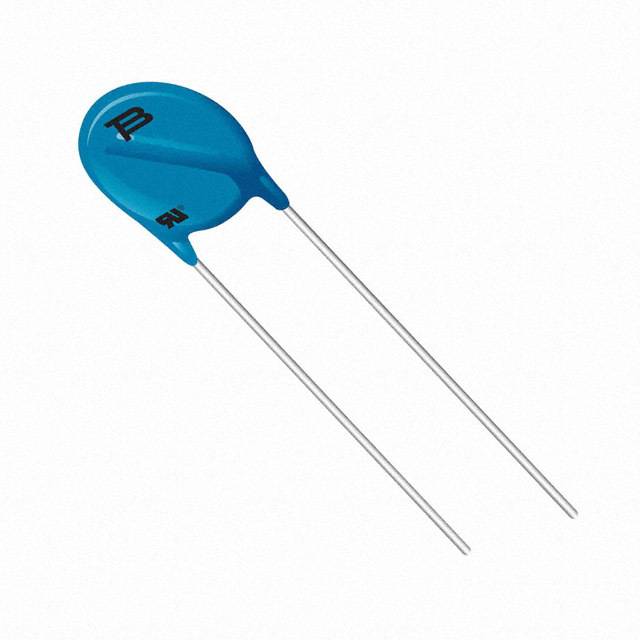

Have complete control of resistance in a voltage applied circuit by using this MOV-10D561K MOV developed by Bourns. This device&s;s clamping current is 25 A and clamping voltage is 925 V. This part has a pitch of 7.5 mm. Its maximum surge current is 2500 A. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This device utilizes metal oxide technology. Its capacitance value is 180pF. Its tolerance voltage is 10%. This product is 15.5 mm tall and 7.2 mm deep with a diameter of 12.5 mm. This varistor has a voltage of 560 V. The maximum AC voltage rating is 350 VAC and the maximum DC voltage rating is 460 VDC.

安富利:
Var MOV 350VAC/460VDC 2500A 560V Radial Bulk

Chip1Stop:
Var MOV 350VAC/460VDC 2500A 560V Radial Bulk

Electro Sonic:
Var MOV 350VAC/460VDC 2500A 560V Thru-Hole Radial Bulk
