开关模式™功率整流器 SWITCHMODE Power Rectifier
阵列 1 对共阴极 肖特基 10A 通孔 TO-220-3
得捷:
DIODE ARRAY SCHOTTKY 45V TO220AB
贸泽:
Schottky Diodes & Rectifiers 20A 45V
艾睿:
If your circuit needs to adjust from an AC to DC voltage use a Schottky diode MBR2045CTG rectifier from ON Semiconductor. This product comes in rail packaging to keep individual parts separated and protected. Its peak non-repetitive surge current is 150 A, while its maximum continuous forward current is 20 A. This rectifier has an operating temperature range of -65 °C to 175 °C. It is made in a dual common cathode configuration.
Allied Electronics:
Diode; Schottky Barrier; Vr 45V; If 20A; Pkg TO-220AB; Vf 0.71V; Tj +175degc; Cs 150A
Chip1Stop:
Diode Schottky 45V 20A 3-Pin3+Tab TO-220AB Tube
Verical:
Rectifier Diode Schottky 45V 20A 3-Pin3+Tab TO-220AB Tube
Win Source:
DIODE ARRAY SCHOTTKY 45V TO220AB
额定电压DC 45.0 V
额定电流 20.0 A
电容 500 pF
正向电压 0.84 V
热阻 2℃/W RθJC
正向电流 10 A
最大正向浪涌电流（Ifsm） 150 A
正向电压Max 570mV @10A
正向电流Max 20000 mA
工作温度Max 175 ℃
工作温度Min -65 ℃
工作结温Max 175 ℃
安装方式 Through Hole
引脚数 3

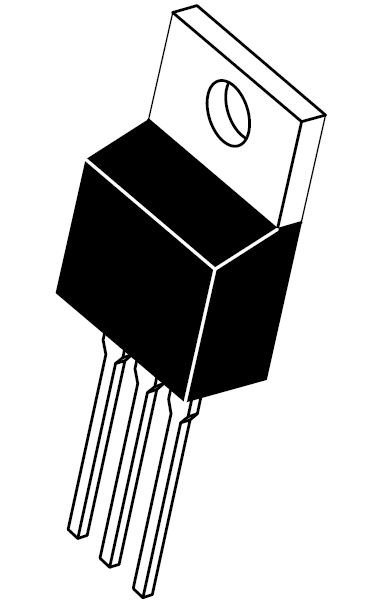

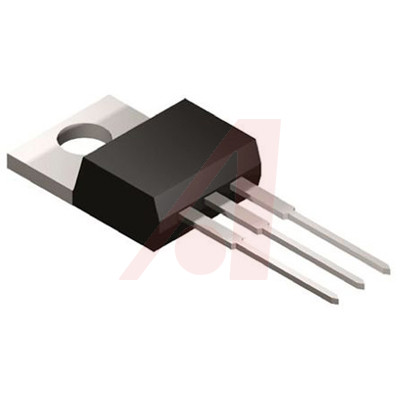

封装 TO-220-3
长度 10.29 mm
宽度 4.82 mm
高度 9.28 mm
封装 TO-220-3
工作温度 -65℃ ~ 175℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MBR2045CTG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MBR1545CTG 安森美 | 类似代替 | MBR2045CTG和MBR1545CTG的区别 |
STPS2045CT 意法半导体 | 功能相似 | MBR2045CTG和STPS2045CT的区别 |
MBR2045CT-E3/45 威世 | 功能相似 | MBR2045CTG和MBR2045CT-E3/45的区别 |
