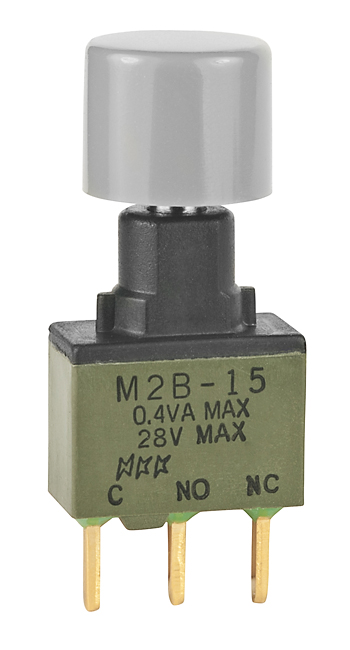

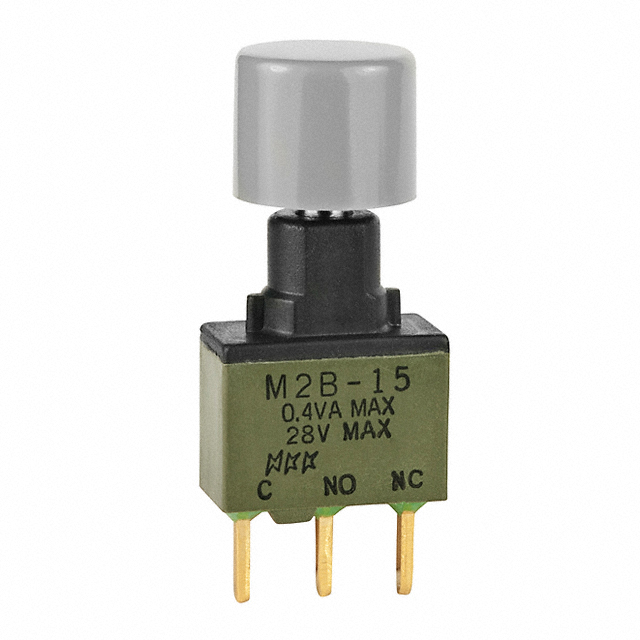

M2B15BA5G03-CH

Switch Push Button ON ON SPDT Round Plunger 0.1A 28VAC 28VDC 0.4VA Momentary Contact PC Pins Thru-Hole

按钮 SPDT 标准 通孔

得捷:
SWITCH PUSH SPDT 0.4VA 28V

立创商城:
M2B15BA5G03-CH

艾睿:
This classic M2B15BA5G03-CH push button switch from NKK Switches will do exactly what you need it to do by turning your circuit on and off. This device has a maximum current rating of 0.1 A @ 28VAC 28VDC. It has a SPDT configuration. This push switch has a minimum operating temperature of -30 °C and a maximum of 85 °C. The M2B15BA5G03-CH push switch has a PC pin termination style. This product is 12.7 mm long, 25.8 mm tall and 6.6 mm deep. The maximum AC voltage rating is 28 VAC and the maximum DC voltage rating is 28 VDC.

Allied Electronics:
SWITCH PUSH SPDT 0.4VA 28V

Powell:
MINIATURE PUSHBUTTON/PC
