ON SEMICONDUCTOR MC14007UBCPG 芯片, 4000系列 CMOS逻辑器件
The MC14007UB multipurpose device consists of three N−Channel and three P−Channel enhancement mode devices packaged to provide access to each device. These versatile parts are useful in inverter circuits, pulse−shapers, linear amplifiers, high input impedance amplifiers, threshold detectors, transmission gating, and functional gating.
Features
•Diode Protection on All Inputs
•Supply Voltage Range = 3.0 Vdc to 18 Vdc
•Capable of Driving Two Low−power TTL Loads or One Low−power
Schottky TTL Load Over the Rated Temperature Range
•Pin−for−Pin Replacement for CD4007A or CD4007UB
•This device has 2 outputs without ESD Protection. Antistatic
precautions must be taken.
•Pb−Free Packages are Available
电源电压DC 3.00V min
输出接口数 3
输出电流 10 mA
电路数 3
通道数 3
针脚数 14
位数 3
耗散功率 500 mW
逻辑门个数 3
输入数 1
工作温度Max 125 ℃
工作温度Min -55 ℃
电源电压 3V ~ 18V
电源电压Max 18 V
电源电压Min 3 V
安装方式 Through Hole
引脚数 14

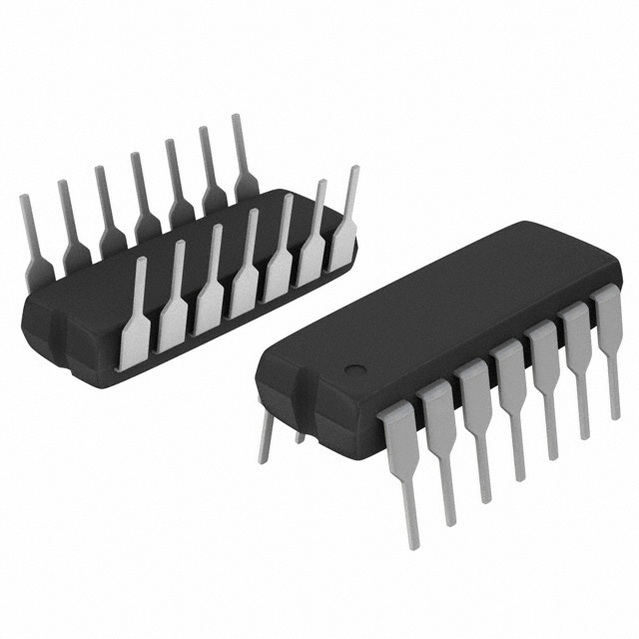

封装 DIP-14
封装 DIP-14
工作温度 -55℃ ~ 125℃
产品生命周期 Unknown
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC版本 2015/12/17
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC14007UBCPG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC14007UBCP 安森美 | 类似代替 | MC14007UBCPG和MC14007UBCP的区别 |
CD4007UBE 德州仪器 | 功能相似 | MC14007UBCPG和CD4007UBE的区别 |
HEF4007UBP,652 恩智浦 | 功能相似 | MC14007UBCPG和HEF4007UBP,652的区别 |
