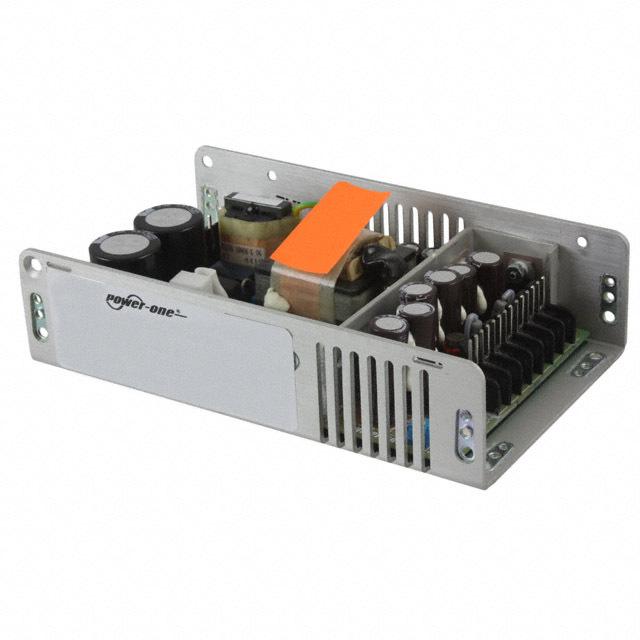

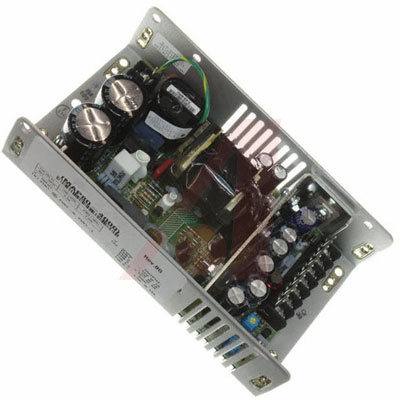

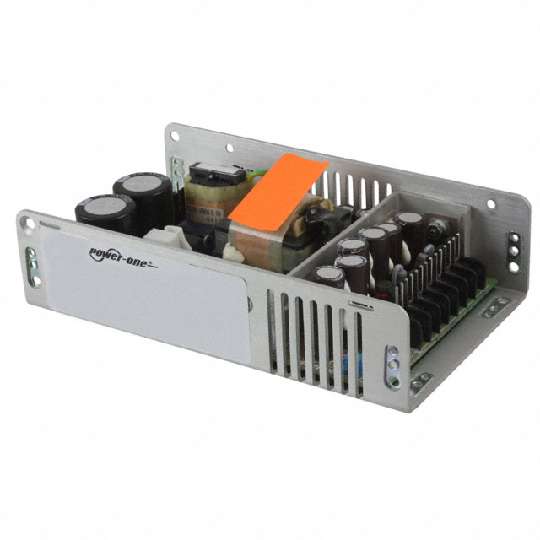

AC-DC Power Supply Single-OUT 12V/15V 7.5A/6A 80W 14Pin
80 W Power Rating, 90 to 135 VAC/175 to 264 VAC Input Voltage, Power Supplies
* Input transient & ESD compliance to EN61000-4-2/-3/-4
* Meets EN55022, Class B limits
* TTL compatible Power Fail Signal
* Greater than 175,000 Hours MTBF
* Metric and SAE mounting inserts
** CE Mark Compliances**
* EN61000-4-2 ESD Level 4 8 KV: All Map Products
* EN61000-4-3 Radiated Level 3 10 V/M: All Map Products
* EN61000-4-4 EFT/B Level 3: All Map Products Except for MAP130-1005, MAP130-4003, MAP130-4010 Which Meet Level 2
* EN55022 Conducted Class B: All Map Products Except for MAP30-1005, MAP40-3000, MAP40-3003 Which Meet Class A
* EN55022 Radiated Class B: All Map Products Except for MAP40-3000, MAP40-3003, MAP40-3500, MAP55-All Multiple Output Models, MAP110-1012/1024, MAP110-4001/4002/4003/4004/4010, MAP130-1005 Which Meet Class A
* Universal Input: 90-132 VAC or 175-264 VAC
额定功率 80 W
输出接口数 1
输出电压 12 V
输出电流 6 A
输出功率 80 W
隔离电压 2.6 kV
输入电压AC Max 264 V
输入电压AC Min 90 V
输出电流Max 7.5 A
输入电流Min 2.5 Arms
输出功率Max 80 W
额定功率Max 80 W
工作温度Max 70 ℃
工作温度Min 0 ℃
输入电压 90VAC ~ 264VAC
引脚数 14
长度 7.2 in
宽度 4.2 in
高度 1.8 in
工作温度 0℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 ITE（商业）
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8504409520
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MAP80-1012G BEL Power Solutions 贝儿电源 | 当前型号 | 当前型号 |
MAP80-1012 贝儿电源 | 完全替代 | MAP80-1012G和MAP80-1012的区别 |
