MPU150-4530

AC-DC Power Supply Quad-OUT 5V/3.3V/12V/12V 30A/15A/3A/3A 150W

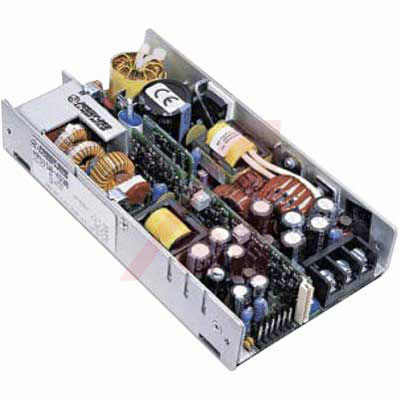

MPU150 Series Power Supply

The MPU150 is the first product in this power range incorporating PFC in a low profile package that meets 1U height constraints. The MPU150-3300 and the provide high current +3.3 V and +5 V together on a single platform to support mixed-mode, high-speed digital circuitry. All models feature remote sense on V1 and V2 to provide independent compensation of power cable losses.

.

* Dimensions:** 8.00" × 4.20" × 1.50" L × W × H.

** 150 Watts with PFC**

* Active Power Factor Correction Meets EN61000-3-2

* Low Profile Height Fits 1U Height Constraints

* Dual Main Outputs Provide 3.3 V and 5 V for Mixed Mode Applications

* Single-Wire Current Sharing on Outputs V1 and V2

* Remote Sense on Outputs V1 and V2

* Over Temperature, Overload and Overvoltage Protection

* CE Marked to the LVD

* Autoranging AC Input, 85-264 VAC

* Isolated V3 and V4 Can Be Used as Plus or Minus Outputs
