MC74LCX258DTG

编码器、解码器、复用器和解复用器 2-3.6V CMOS Quad 2-Input

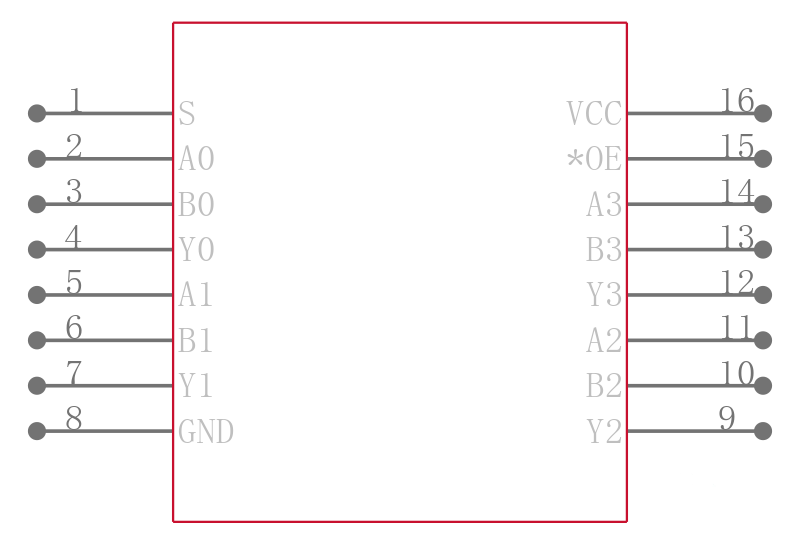

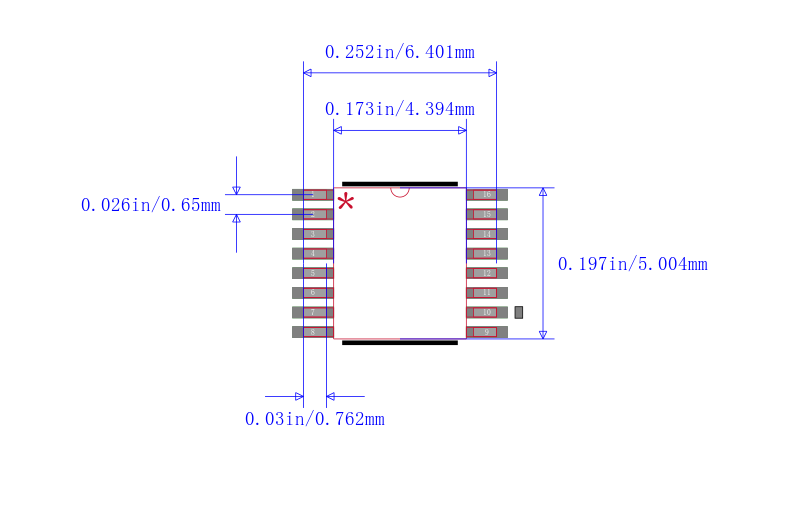

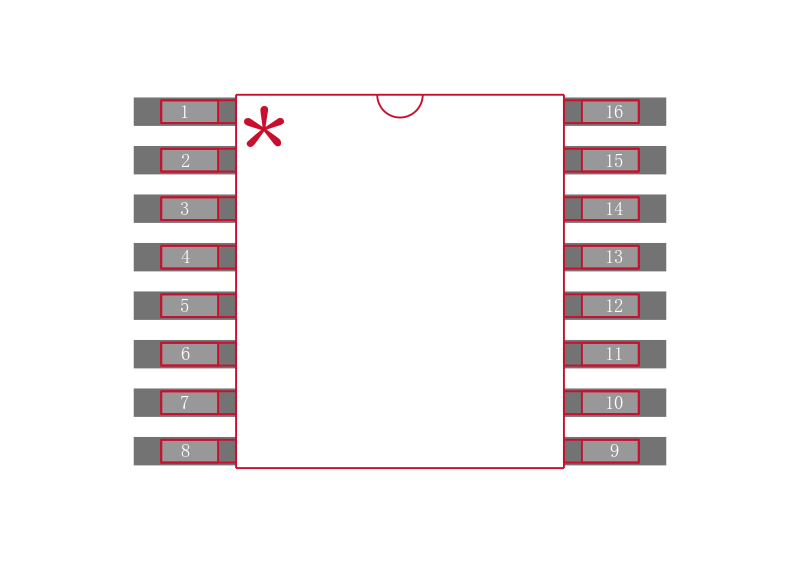

The MC74LCX258 is a high performance, quad 2-input inverting multiplexer with 3-state outputs operating from a 2.3 to 3.6V supply. Highimpedance TTL compatible inputs significantly reduce current loading toinput drivers while TTL compatible outputs offer improved switching noise performance. A V specification of 5.5V allows MC74LCX258 inputs to be safely driven from 5V devices.Four bits of data from two sources can be selected using the Select input. The four outputs present the selected data in the inverted form. The outputs may be switched to a high impedance state by placing a logic HIGH on the Output Enable OEbar input. Current drive capability is 24mA at the outputs.

Features

---

 |

.

Designed for 2.3 to 3.6V VCC Operation

.

5V Tolerant - Interface Capability With 5V TTL Logic

.

Supports Live Insertion and Withdrawal

.

IOFF Specification Guarantees High Impedance When VCC = 0V

.

LVTTL Compatible

.

LVCMOS Compatible

.

24mA Balanced Output Sink and Source Capability

.

Near Zero Static Supply Current in All Three Logic States 10mA Substantially Reduces System Power Requirements

.

Latchup Performance Exceeds 500mA

.

ESD Performance: Human Body Model >2000V; Machine Model >200V

.

Pb-Free Packages are Available*
