MC14555BDR2G

两位二进制四解码器

Dual Binary to 1−of−4 Decoder/Demultiplexer

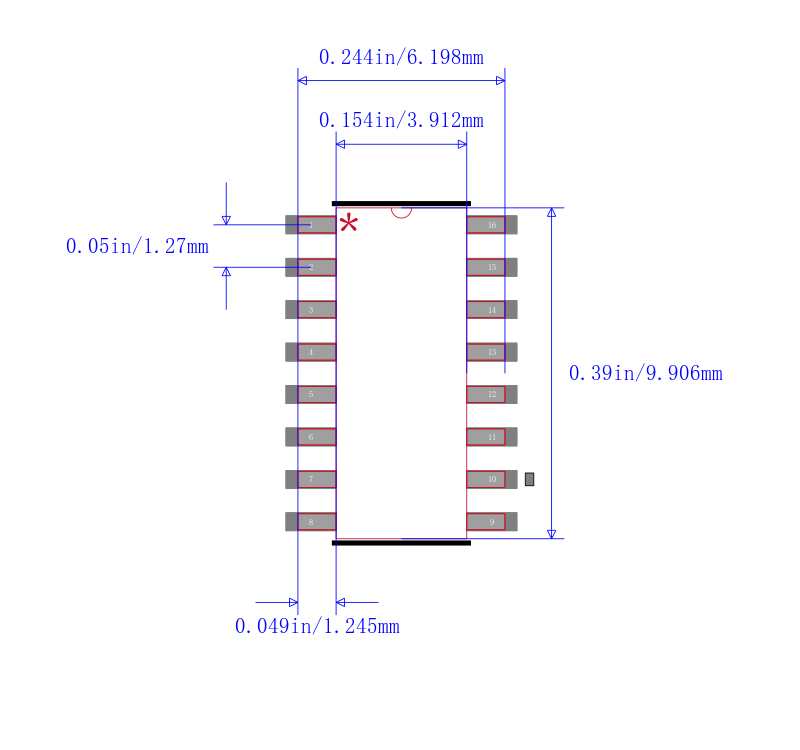

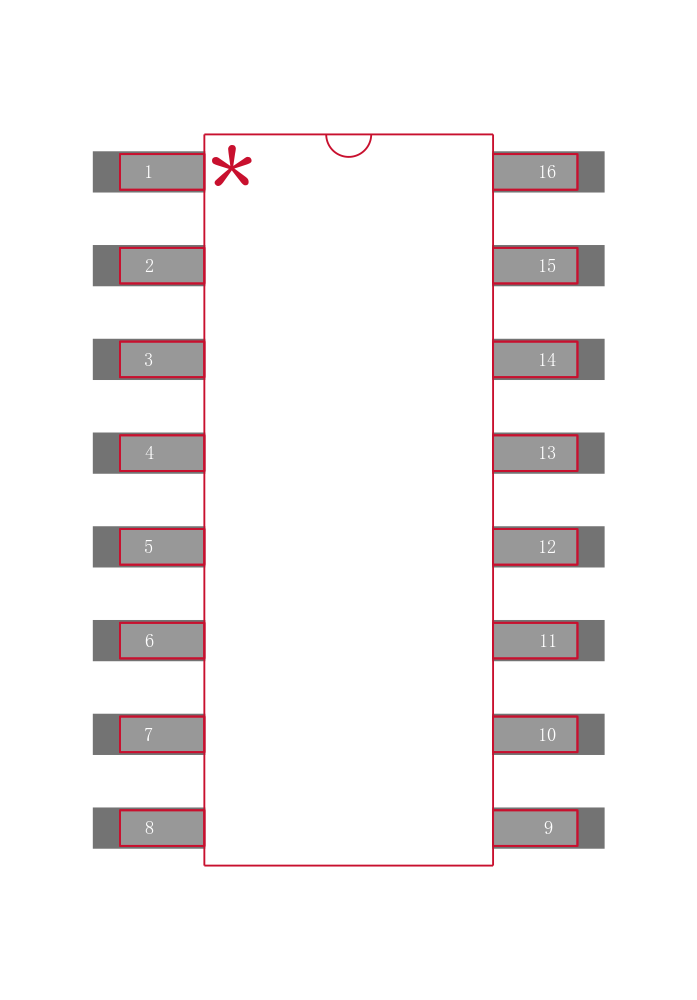

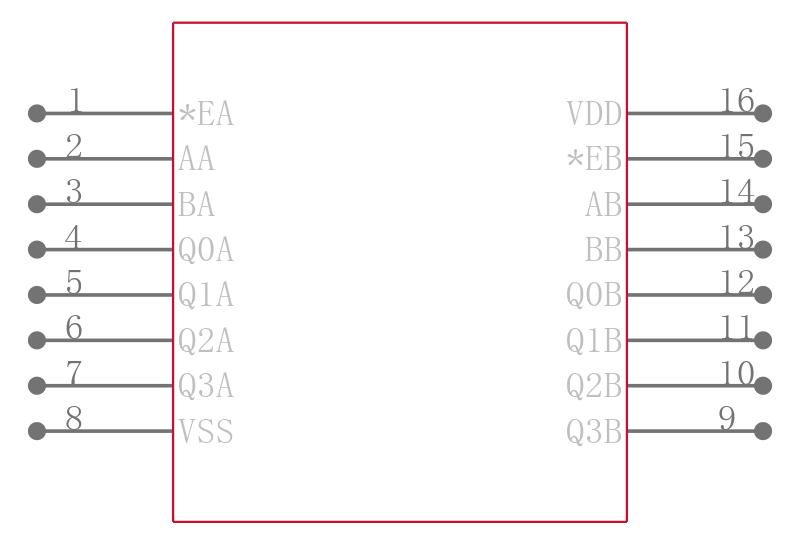

The MC14555B and MC14556B are constructed with complementary MOS CMOS enhancement mode devices. Each Decoder/Demultiplexer has two select inputs A and B, an active low Enable input E, and four mutually exclusive outputs Q0, Q1, Q2, Q3. The MC14555B has the selected output go to the “high” state, and the MC14556B has the selected output go to the “low” state. Expanded decoding such as binary−to−hexadecimal 1−of−16, etc., can be achieved by using other MC14555B or MC14556B devices.

Features

•Diode Protection on All Inputs•Active High or Active Low Outputs

•Expandable

•Supply Voltage Range = 3.0 Vdc to 18 Vdc

•All Outputs Buffered

•Capable of Driving Two Low−Power TTL Loads or One Low−Power

  Schottky TTL Load Over the Rated Temperature Range

•Pb−Free Packages are Available

.
