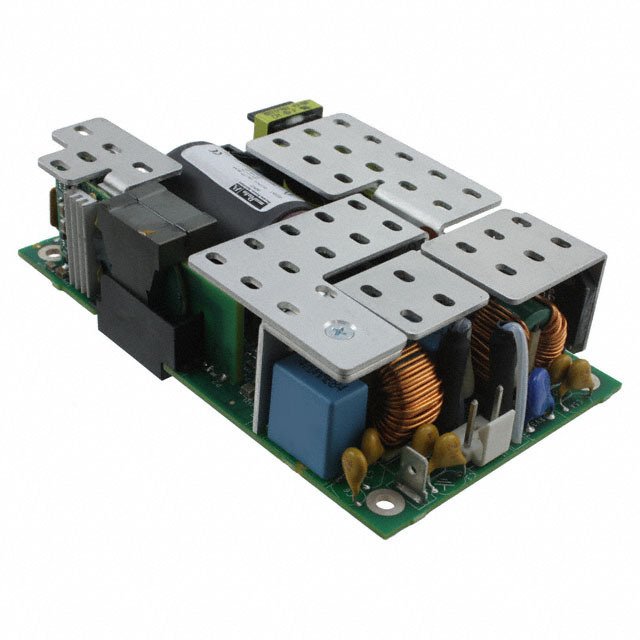

MVAC400 系列 400 W 单输出 48 V 高密度 AC-DC 电源
开放框架 AC DC 转换器 输出 50V 12V 5V - 8A，1A，2A 90 ~ 264 VAC 输入
得捷:
AC/DC CONVERTER 50V 12V 5V 250W
艾睿:
This MVAC400-48AFD AC to DC power supply from Murata Power Solutions converts an alternating current source to a direct current supply. It has a voltage of 50 V and maximum output power of 250 W. This part&s;s single output can handle a current up to 8 A. This part has a minimum operating temperature of -10 °C and a maximum of 70 °C.
安富利:
AC/DC Power Supply Single-OUT 50V 8A 250W 22-Pin
Chip1Stop:
AC/DC Power Supply Single-OUT 50V 8A 250W 22-Pin
AMEYA360:
AC/DC CONVERTER 50V 12V 5V 250W
额定功率 400 W
输出接口数 1
输出电压 50 V
输出电流 8 A
输出功率 400 W
隔离电压 3 kV
输入电压DC Max 300 V
输入电压DC Min 127 V
输入电压AC Max 264 v
输入电压AC Min 90 v
额定电流Max 5.5 A
输出电流Max 8 A
输入电流Min 5.5 A
输出功率Max 400 W
工作温度Max 70 ℃
工作温度Min -10 ℃
输入电压 90V ~ 264V
引脚数 22
宽度 3 in
工作温度 -10℃ ~ 70℃
产品生命周期 Active
包装方式 Bulk
制造应用 Power Management, ITE（商业），医疗, Industrial, Computers & Computer Peripherals, Medical, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
