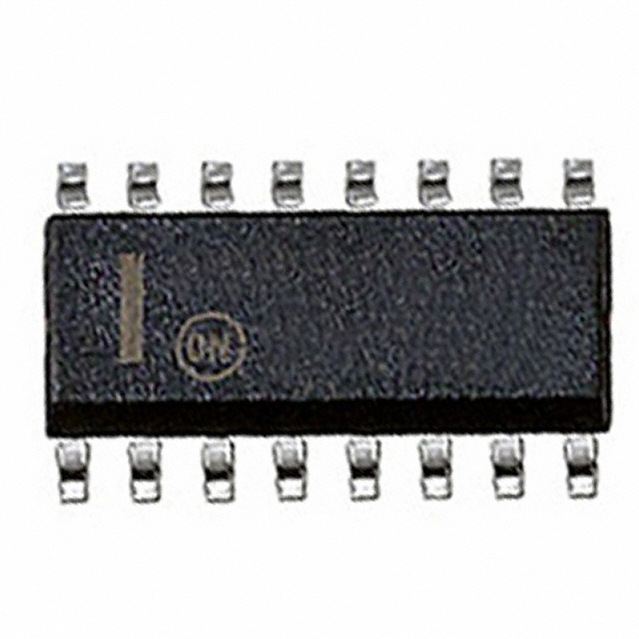

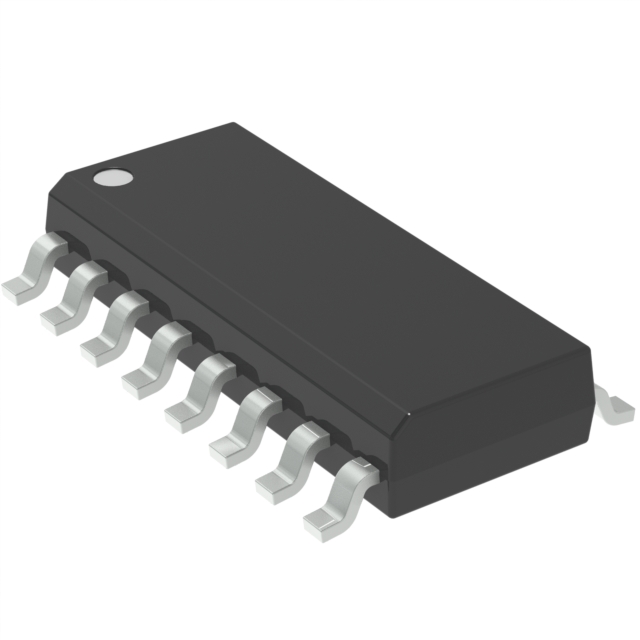

MC74ACT257 系列 ACT系列产品 5 V 三态 四 双输入 多路复用器 - SOIC-16
brings you their latest multiplexer, the perfect solution to reducing numerous electrical lines into only a few select lines. This multiplexer has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product comes in rail packaging to keep individual parts separated and protected. It is made in a 4 x 2:1 configuration. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 4.5 V, while its maximum is 5.5 V.
无卤素状态 Halogen Free
输出接口数 4
触点类型 DPST
电路数 4
位数 4
输入数 8
工作温度Max 85 ℃
工作温度Min -40 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16
封装 SOIC-16
长度 10 mm
宽度 4 mm
高度 1.5 mm
封装 SOIC-16
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC74ACT257DG ON Semiconductor 安森美 | 当前型号 | 当前型号 |
MC74ACT257D 安森美 | 完全替代 | MC74ACT257DG和MC74ACT257D的区别 |
74ACT257SC 飞兆/仙童 | 类似代替 | MC74ACT257DG和74ACT257SC的区别 |
74ACT157MTCX 飞兆/仙童 | 类似代替 | MC74ACT257DG和74ACT157MTCX的区别 |
