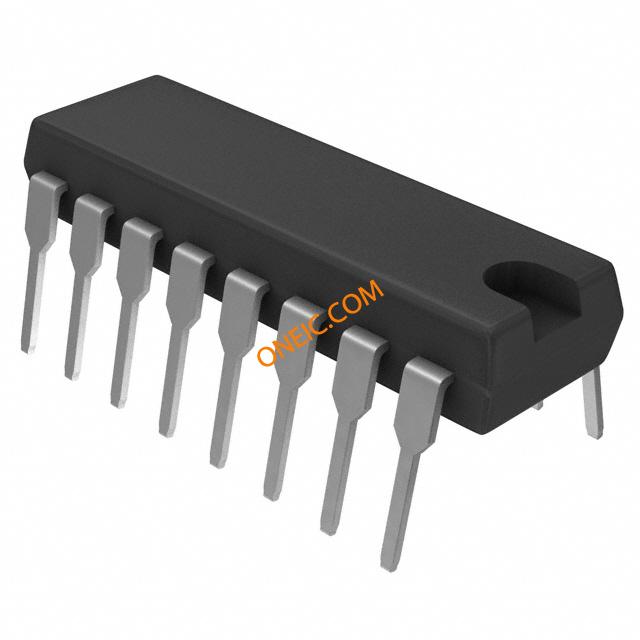

MM74HC139N

双路2至4线解码器 Dual 2-To-4 Line Decoder

General Description

The MM74HC139 decoder utilizes advanced silicon-gate CMOS technology, and is well suited to memory address decoding or data routing applications. It possesses the high noise immunity and low power consumption usually associated with CMOS circuitry, yet has speeds comparable to low power Schottky TTL logic.

The MM74HC139 contain two independent one-of-four decoders each with a single active low enable input G1, or G2. Data on the select inputs A1, and B1 or A2, and B2 cause one of the four normally high outputs to go LOW. The decoder’s outputs can drive 10 low power Schottky TTL equivalent loads, and are functionally as well as pin equivalent to the 74LS139. All inputs are protected from damage due to static discharge by diodes to VCC and ground.

Features

■ Typical propagation delays —

   Select to outputs 4 delays: 18 ns

   Select to output 5 delays: 28 ns

   Enable to output: 20 ns

■ Low power: 40 µW quiescent supply power

■ Fanout of 10 LS-TTL devices

■ Input current maximum 1 µA, typical 10 pA
