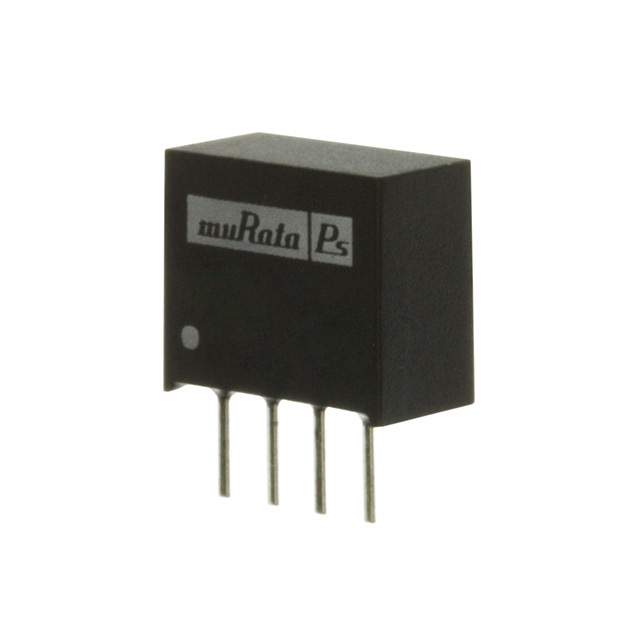

MURATA POWER SOLUTIONS MEE1S2415SC 直流/直流转换器 隔离式板载, 1kV隔离, SIP, 固定, 通孔安装, 1 W, 15 V, 67 mA

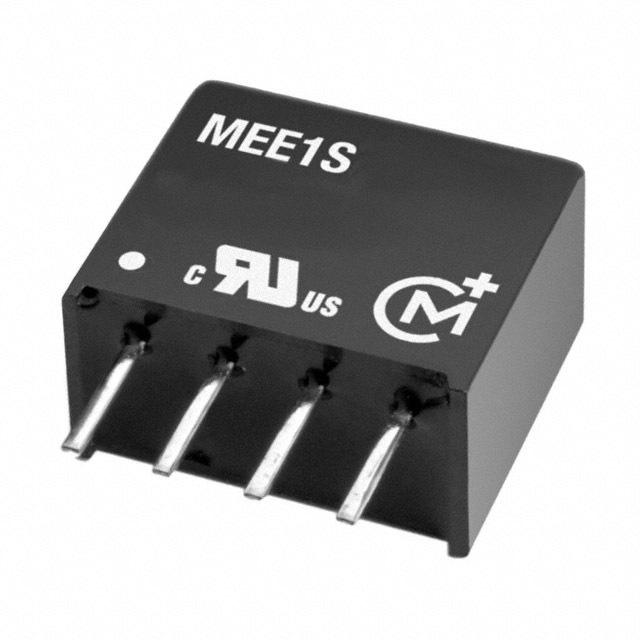

The MEE1 series isolated single-output PCB-mounting DC/DC Converter with free air convection cooling. The device is more efficient and offers improved regulation performance for applications where a wide output voltage variation cannot be tolerated. This is ideally suited for providing local supplies on control system boards with the added benefit of 1kVDC galvanic isolation to reduce switching noise.
- .
- Operation to zero load
- .
- 1kVDC Isolation hi pot test
- .
- Efficiency up to 87% typical
电源电压DC 24.0 V
额定功率 1 W
输出接口数 1
输入电压DC 240 V
输出电压 15 V
输出电流 0.067 A
输出功率 1 W
隔离电压 1 kV
输入电压Max 26.4 V
输入电压Min 21.6 V
输入电压DC Max 26.4 V
输入电压DC Min 21.6 v
输出电流Max 67 mA
输出功率Max 1 W
工作温度Max 85 ℃
工作温度Min -40 ℃
输入电压 21.6V ~ 26.4V
安装方式 Through Hole
引脚数 4
封装 SIP-4
宽度 6 mm
高度 10 mm
封装 SIP-4
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Tube, Rail
制造应用 信号处理, Signal Processing, HVAC, 工业, Industrial, ITE（商业）
RoHS标准
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
| 型号/品牌 | 代替类型 | 替代型号对比 |
|---|---|---|
MEE1S2415SC muRata 村田 | 当前型号 | 当前型号 |
IE2415S XP Power | 功能相似 | MEE1S2415SC和IE2415S的区别 |
MCE24S15S Multicomp | 功能相似 | MEE1S2415SC和MCE24S15S的区别 |
IE2415S-H XP Power | 功能相似 | MEE1S2415SC和IE2415S-H的区别 |
