9位锁存器TTL至ECL转换器 9−Bit Latch TTL to ECL Translator
Description

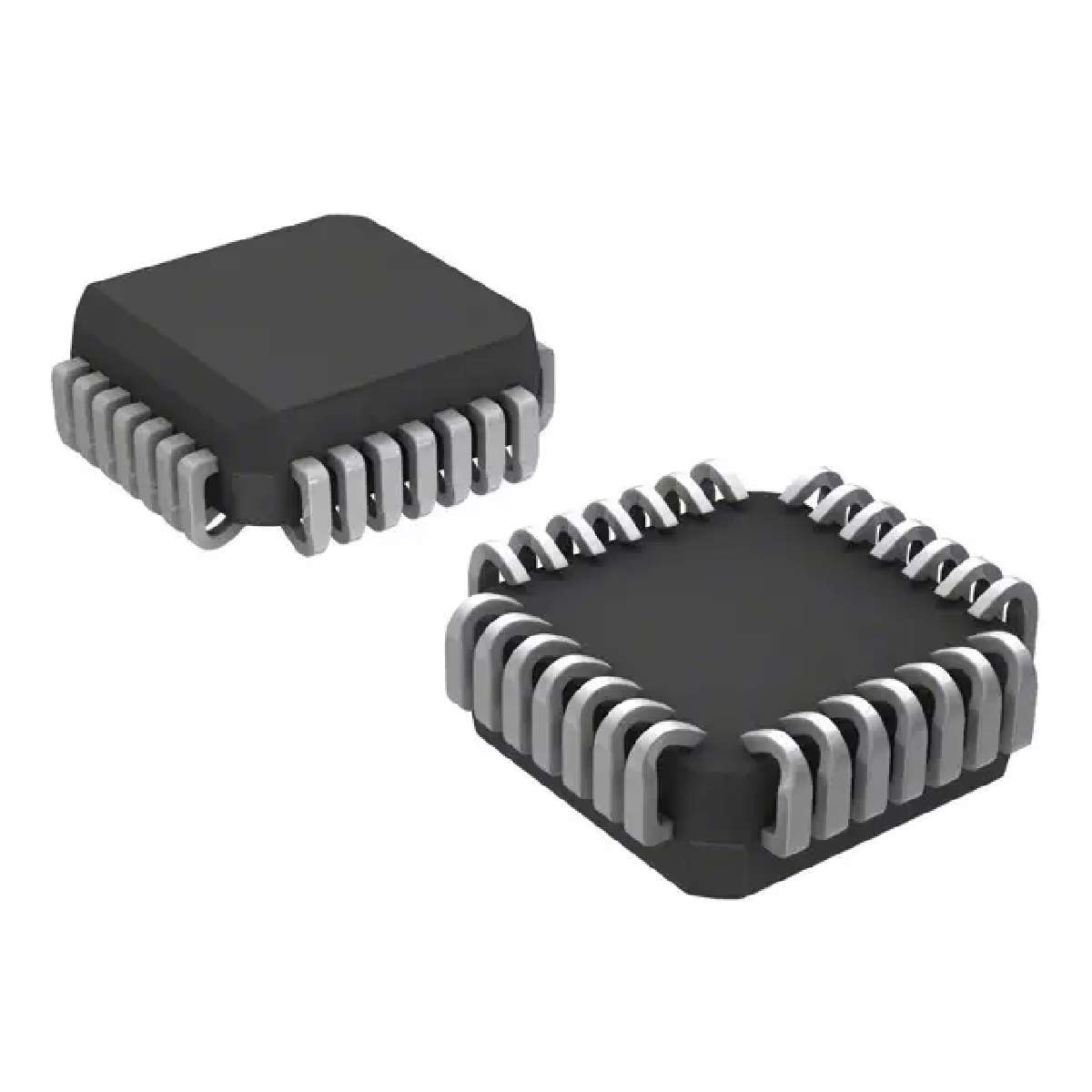

The MC10H/100H602 is a 9−bit, dual supply TTL to ECL translator with latch. Devices in the 9−bit translator series utilize the PLCC−28 for optimal power pinning, signal flow−through and electrical performance.

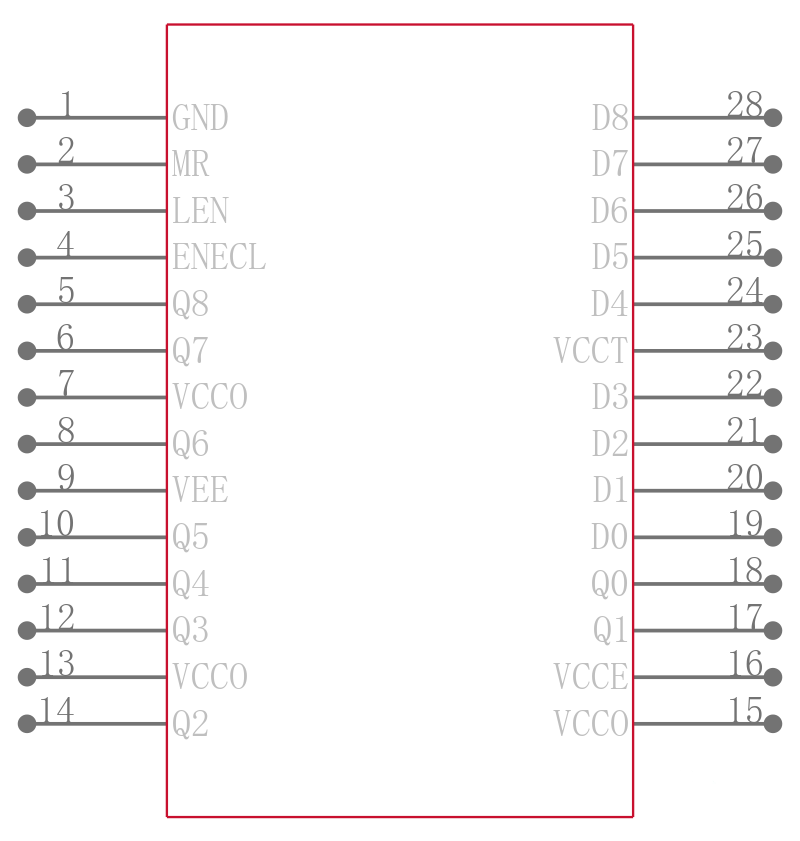

The H602 features D−type latches. Latching is controlled by Latch Enable LEN, while the Master Reset input resets the latches. A post−latch logic enable is also provided ENECL, allowing control of the output state without destroying latch data. All control inputs are ECL level.
The 10H version is compatible with MECL 10H™ ECL logic levels.
The 100H version is compatible with 100K levels.
Features
• 9−Bit Ideal for Byte−Parity Applications
• Flow−Through Configuration
• Extra TTL and ECL Power/Ground Pins to Minimize Switching Noise
• Dual Supply
• 3.5 ns Max D to Q
• PNP TTL Inputs for Low Loading
• Pb−Free Packages are Available型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MC10H602FN ON Semiconductor 安森美 | 当前型号 | 当前型号 |
SY10H602JC 微芯 | 类似代替 | MC10H602FN和SY10H602JC的区别 |
SY10H602JZ 微芯 | 类似代替 | MC10H602FN和SY10H602JZ的区别 |
MC10H602FNR2 安森美 | 功能相似 | MC10H602FN和MC10H602FNR2的区别 |
