9位锁存器ECL至TTL转换器 9−Bit Latch ECL to TTL Translator
Description

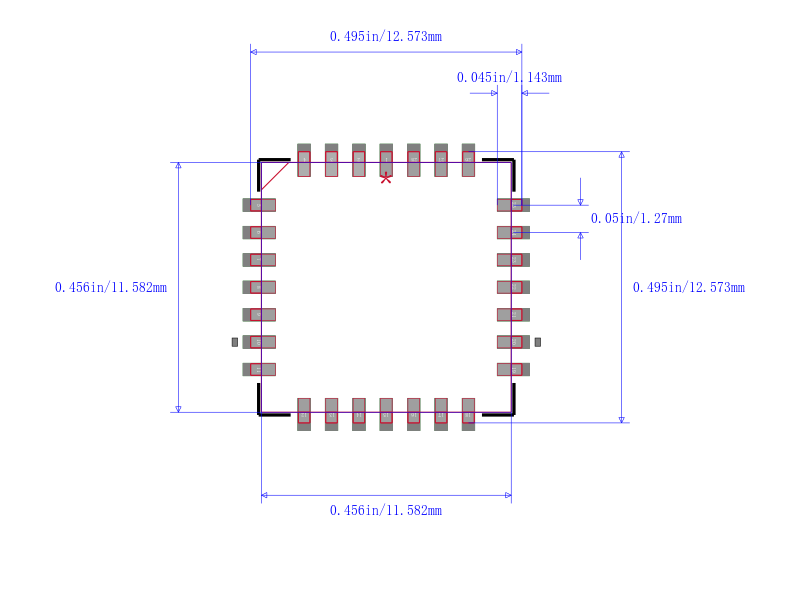

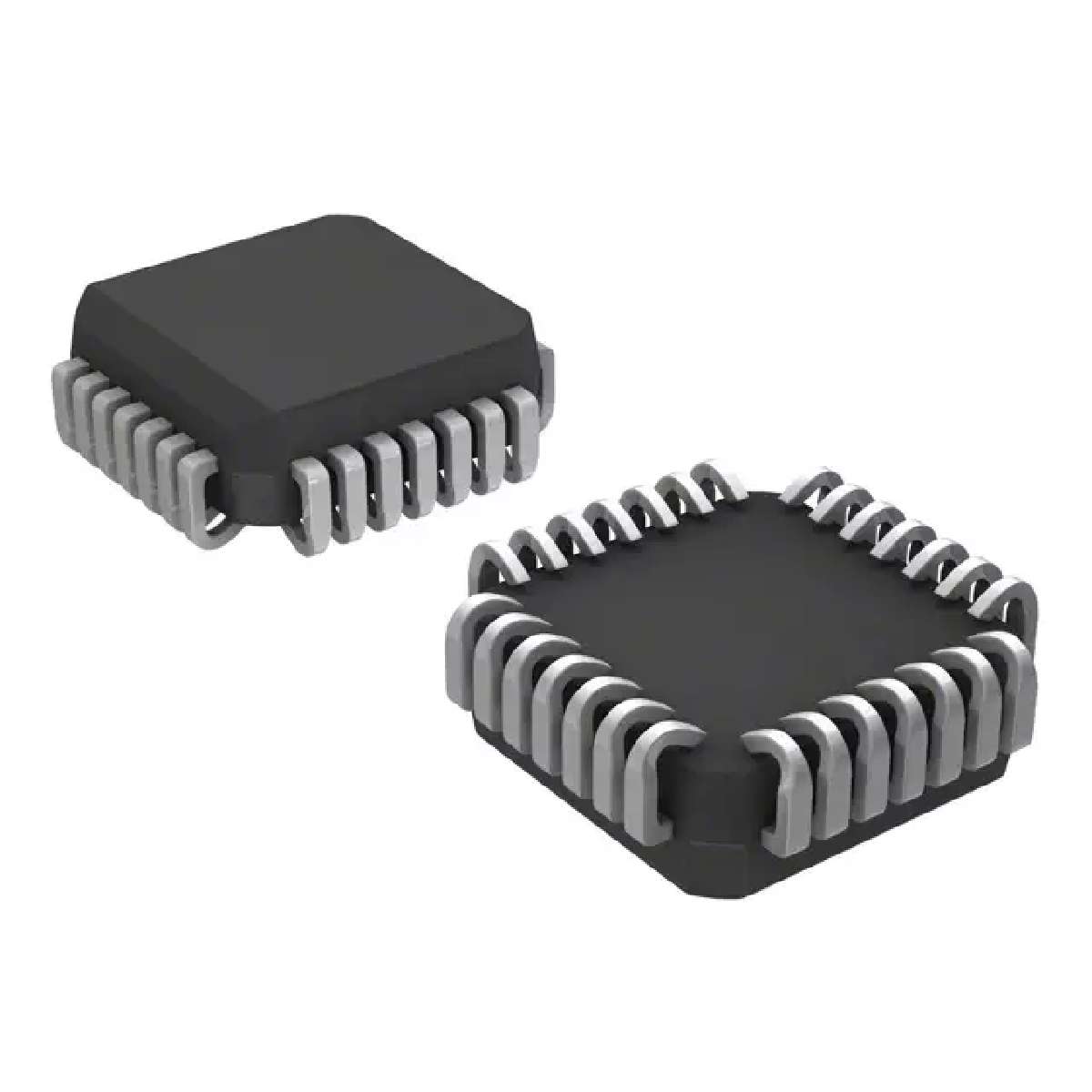

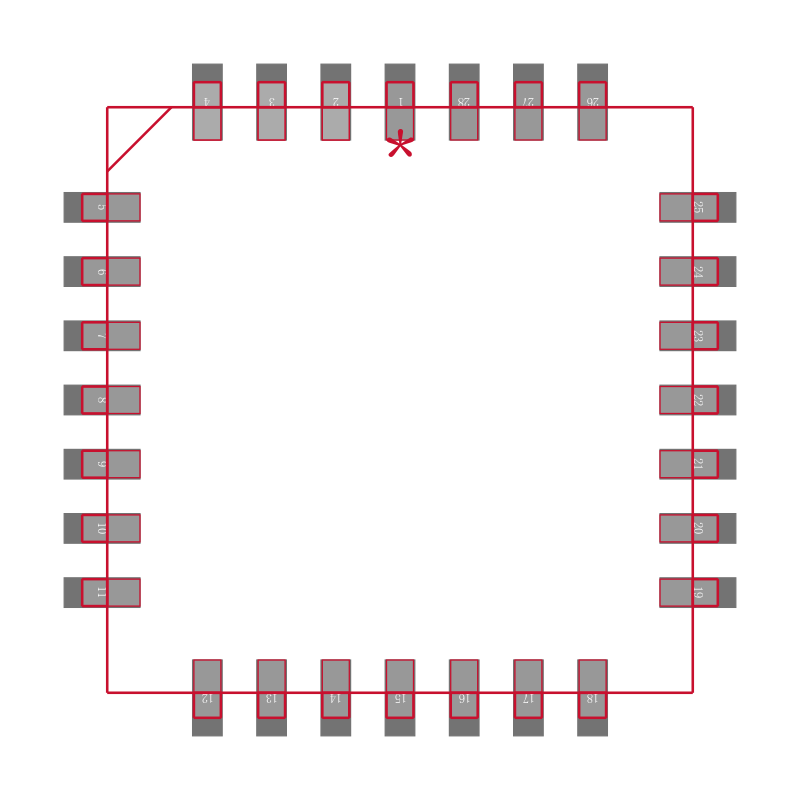

The MC10H/100H603 is a 9−bit, dual supply ECL to TTL translator. Devices in the 9−bit translator series utilize the 28−lead PLCC for optimal power pinning, signal flow−through and electrical performance.

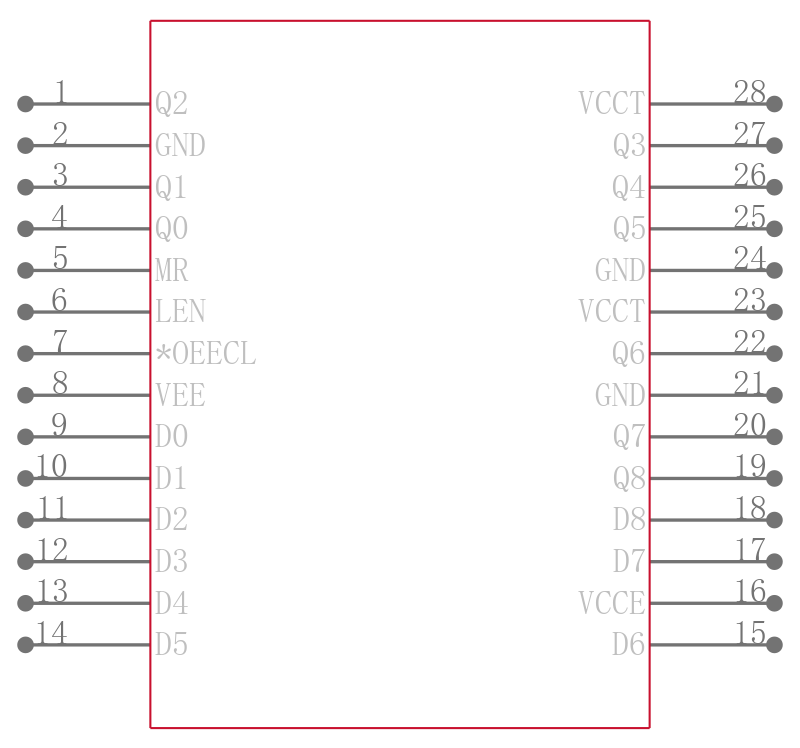

The devices feature a 48 mA TTL output stage, and AC performance is specified into both a 50 pF and 200 pF load capacitance. Latching is controlled by Latch Enable LEN, and Master Reset MR resets the latches. A HIGH on OEECL sends the outputs into the high impedance state. All control inputs are ECL level.
The 10H version is compatible with MECL 10H™ ECL logic levels.
Features
• 9−Bit Ideal for Byte−Parity Applications
• 3−State TTL Outputs
• Flow−Through Configuration
• Extra TTL and ECL Power Pins to Minimize Switching Noise
• Dual Supply
• 6.0 ns Max Delay into 50 pF, 12 ns into 200 pF all Outputs Switching
• PNP TTL Inputs for Low Loading
• Pb−Free Packages are Available- .
