MC33064D-5R2

欠压检测电路 UNDERVOLTAGE SENSING CIRCUIT

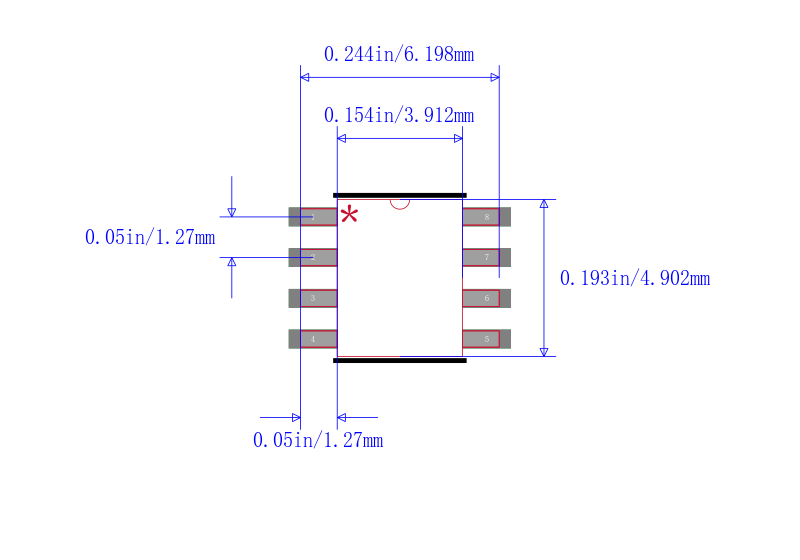

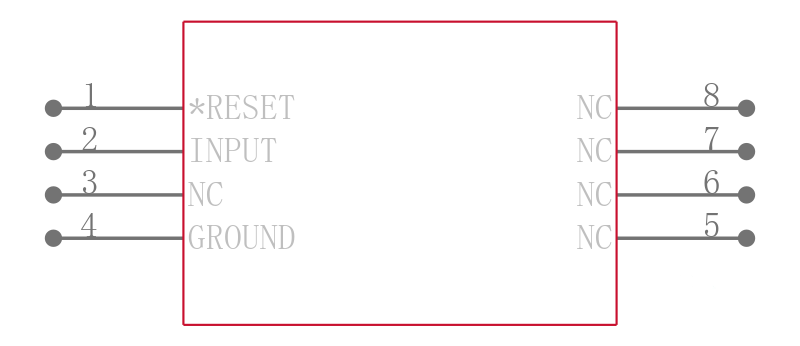

The MC33064/MC34064 is an undervoltage sensing circuit specifically designed for use as a reset controller in microprocessor-based systems. It offers the designer an economical solution for low voltagedetection with a single external resistor. The MC33064/MC34064 features a trimmed-in-package bandgap reference, and a comparator with precise thresholds and built-in hysteresis to prevent erratic reset operation. The open collector reset output is capable of sinking in excess of 10 mA, and operation is guaranteed down to 1.0 V input with low standby current. The MC devices are packaged in 3-pinTO-226AA, 8-pin SO-8,Micro-8 and 5pin SOT-23/TSOP-5 surface mount packages. The NCV device is packaged in SO-8 and TO-226AA. Applications include direct monitoring of the 5.0 V MPU/logic power supply used in appliance, automotive, consumer and industrial equipment.

Features

---

 |

.

Trimmed-In-Package Temperature Compensated Reference

.

Comparator Threshold of 4.6 V at 25° C

.

Precise Comparator Thresholds Guaranteed Over Temperature

.

Comparator Hysteresis Prevents Erratic Reset

.

Reset Output Capable of Sinking in Excess of 10 mA

.

Internal Clamp Diode for Discharging Delay Capacitor

.

Guaranteed Reset Operation with 1.0 V Input

.

Low Standby Current

.

Economical TO-226AA, SO-8, Micro-8 and SOT-23/TSOP-5 Surface Mount Packages

.

Pb-Free Packages are Available
