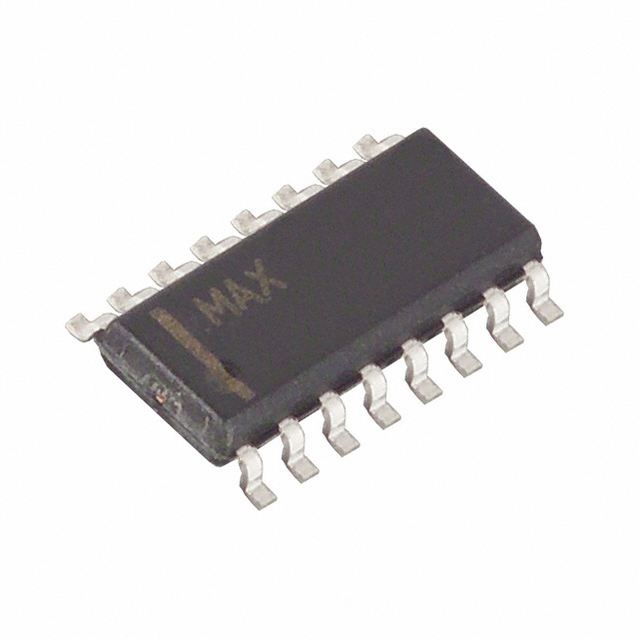

MAX4613CSE+T

Analog Switch Quad SPST 16Pin SOIC N T/R

4 Circuit IC Switch 1:1 70Ohm 16-SO

得捷:
IC SWITCH QUAD SPST 16SOIC

贸泽:
Analog Switch ICs Quad SPST Analog Switch

安富利:
The MAX4613 quad analog switch features on-resistance matching 4Ω max between switches and guarantees on-resistance flatness over the signal range 9Ω max. This low on-resistance switch conducts equally well in either direction. It guarantees low charge injection 10pC max, low power consumption 35µW max, and an electrostatic discharge ESD tolerance of 2000V minimum per Method 3015.7. The new design offers lower off leakage current over temperature less than 5nA at +85°C.The MAX4613 quad, single-pole/single-throw SPST analog switch has two normally closed switches and the two normally open switches. Switching times are less than 250ns for tON and less than 70ns for tOFF. Operation is from a single +4.5V to +40V supply or bipolar ±4.5V to ±20V supplies.
