0.5Ω ，四路SPDT开关，UCSP封装/ QFN 0.5ヘ, Quad SPDT Switches in UCSP/QFN
4 电路 IC 开关 2：1 850 毫欧 16-UCSP（2x2）
得捷:
IC SWITCH QUAD SPDT 16UCSP
安富利:

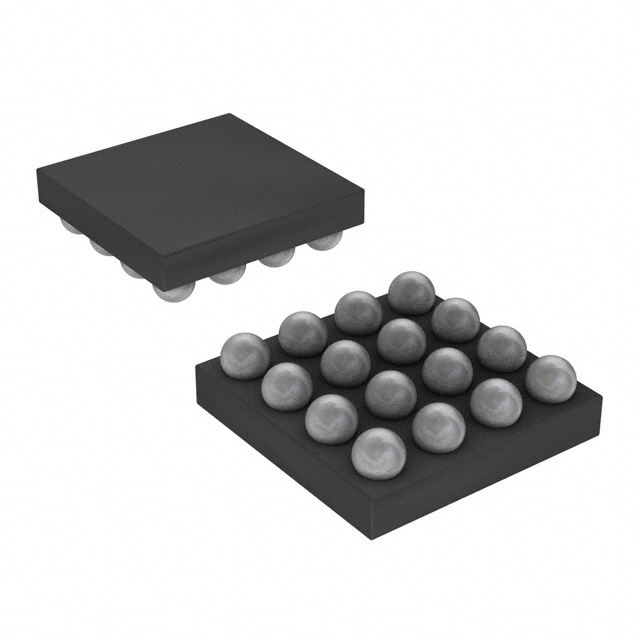

The MAX4754/MAX4754A/MAX4755/MAX4756/MAX4756Alow on-resistance, analog switches operate from a single+1.8V to +5.5V supply. The MAX4754/MAX4754A andMAX4755 are dual, double-pole, double-throw DPDTswitches. The MAX4756/MAX4756A are quad, single-poledouble-throw SPDT switches. They are configured toroute either audio or data signals.The MAX4754/MAX4754A have four 0.5Ω SPDT switches for audio-signal routing and two logic control inputs. The MAX4755 has four 0.5Ω SPDT switches with two switches that have an additional 11Ω series resistor at the NC terminals. This allows users to drive an 8Ω speaker as a 32Ω load ear speaker. The MAX4756/MAX4756A have four 0.5Ω SPDT switches controlled by one logic control input and an enable input active-low EN to disable the switches.The MAX4754/MAX4754A/MAX4755/MAX4756/MAX4756Aare available in a space-saving 16-pin TQFN and a tiny16-bump, 2mm x 2mm chip-scale package UCSP™.
