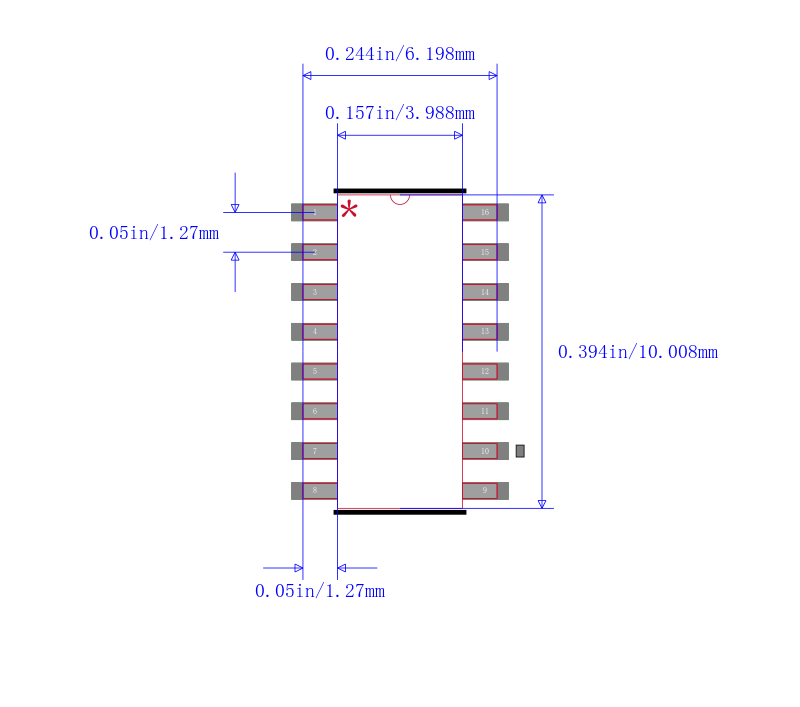

MAX313ESE

10Ω ，四路， SPST ， CMOS模拟开关 10з, Quad, SPST, CMOS Analog Switches

General Description

Maxim’s MAX312/MAX313/MAX314 analog switches feature low on-resistance 10Ωmax and 1.5Ωon-resis tance matching between channels. These switches conduct equally well in either direction. They offer low leakage over temperature 2.5nA at +85°C. Low power consumption and ESD tolerance greater than 2000V per Method 3015.7 are guaranteed. The MAX312/MAX313/MAX314 are quad, single pole/single-throw SPST analog switches. The MAX312 is normally closed NC, and the MAX313 is normally open NO. The MAX314 has two NC switches and two

NO switches. All three devices operate from a single supply of +4.5V to +30V or from dual supplies of ±4.5V to ±20V.

Features

♦Pin Compatible with DG411/DG412/DG413

♦Low On-Resistance 6.5Ωtypical

♦Guaranteed RONMatch Between Channels 1.5Ωmax

♦Guaranteed RONFlatness over Specified Signal Range 2Ωmax

♦Guaranteed ESD Protection > 2000V per Method 3015.7

♦Crosstalk > 96dB at 20kHz

♦Single-Supply Operation: +4.5V to +30V

  Dual-Supply Operation: ±4.5V to ±20V

♦Rail-to-Rail Signal Handling
