MAX293CWE+

MAXIM INTEGRATED PRODUCTS  MAX293CWE+  开关电容滤波器, Elliptic, 低通, 8th, 1, 4.75 V, 11 V, WSOIC

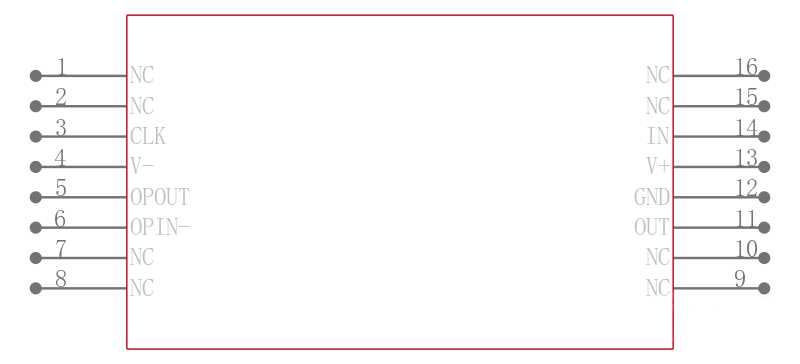

The is an 8th order, low pass, elliptic switched capacitor filter in 16 pin WSOIC package. This filter set up with corner-frequencies ranging from 0.1Hz to 25KHz. It provides -80dB stopband rejection and a sharp roll-off with a transition ratio of 1.5. The fixed response of this device simplifies the design task to corner-frequency selection by setting a clock frequency. An external capacitor is used to generate a clock using the internal oscillator or an external clock signal can be used. An uncommitted op-amp non-inverting input grounded is provided for building a continuous-time low pass filter for post-filtering or anti-aliasing. Steep roll-off and high order make this filter ideal for anti-aliasing applications that require maximum bandwidth and for communication applications that require filtering signals in close proximity within the frequency domain.

.

Operate with a single +5V supply or dual ±5V supplies

.

Operating temperature range from 0°C to 70°C

.

Clock to corner frequency ratio is 100:1

.

Supply current is 15mA at dual ±5V supply and 7mA at single 5V supply

.

Passband ripple is 0.15dB

.

THD plus noise is -71dB

.

Clock oscillator frequency is 35KHz
