MAX232AESE+T

MAXIM INTEGRATED PRODUCTS  MAX232AESE+T  芯片, 线路驱动器, RS232, RS422/RS485

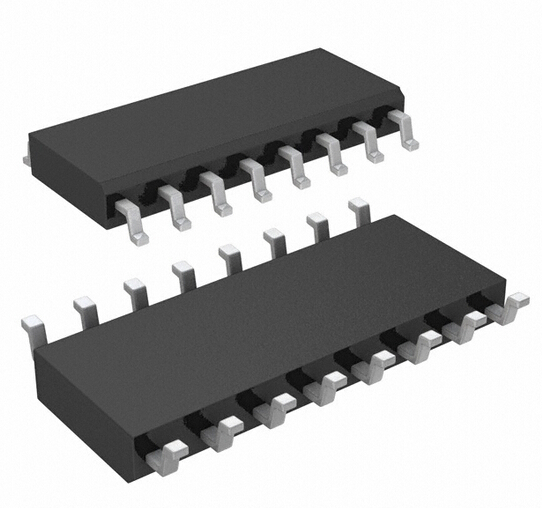

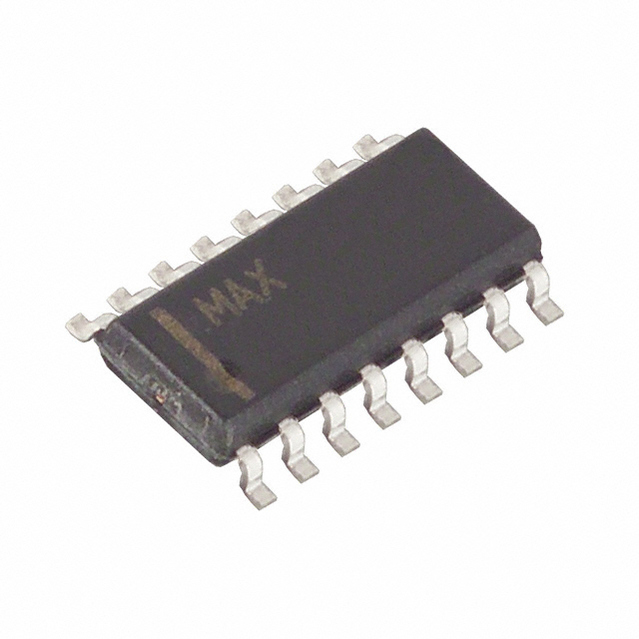

The is a +5V powered multichannel RS232 driver/receiver in 16 pin NSOIC package. This higher slew rate device is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces. It is particularly suitable for applications where ±12V is not available. The MAX232A has four sections such as dual charge pump DC to DC voltage converter, RS232 driver, RS232 receiver and receiver/transmitter enable control inputs. The integrated charge pump circuitry eliminates the need for bipolar ±12V supply and enables single supply operation from +5V supply. It is used in interface translation and multidrop RS232 network applications.

.

Supply voltage range from 4.5V to 5.5V

.

Operating temperature range from -40°C to 85°C

.

Two RS232 drivers and two RS232 receivers

.

Saves board space

.

Data rate of 200Kbps

.

Transition slew rate is 12V/µs CL = 50pF to 2500pF, RL = 3Kohm to 7Kohm

.

VCC supply current VSHDN = VCC of 4mA with no load and 15mA with 3Kohm load at both inputs
