MAX211ECAI+T

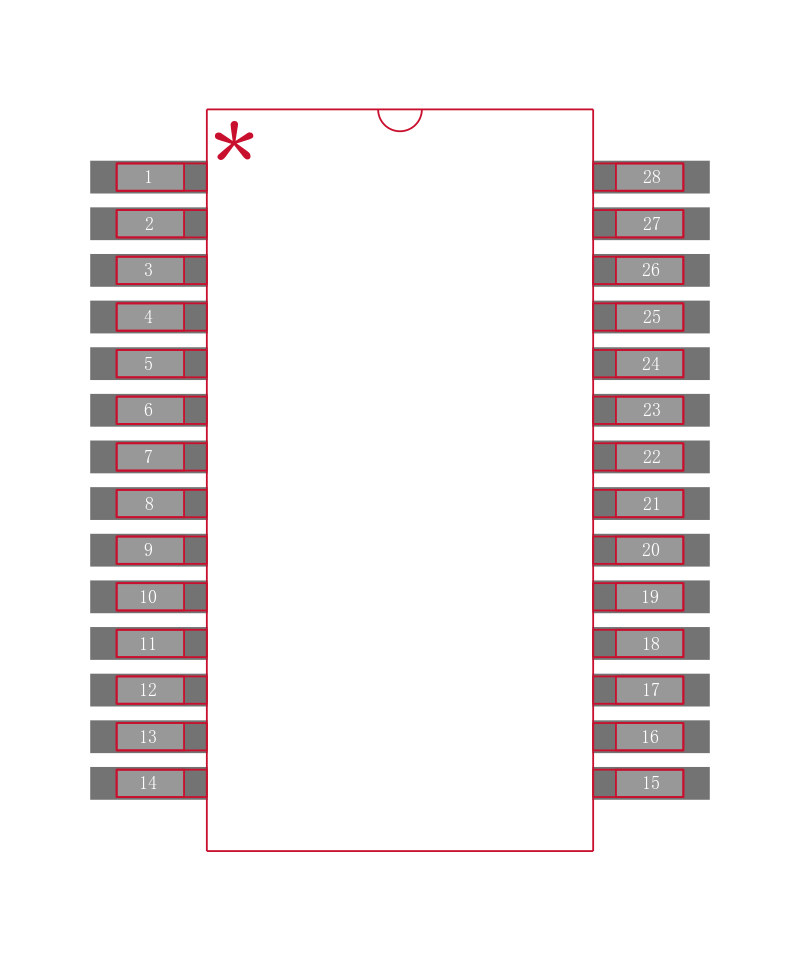

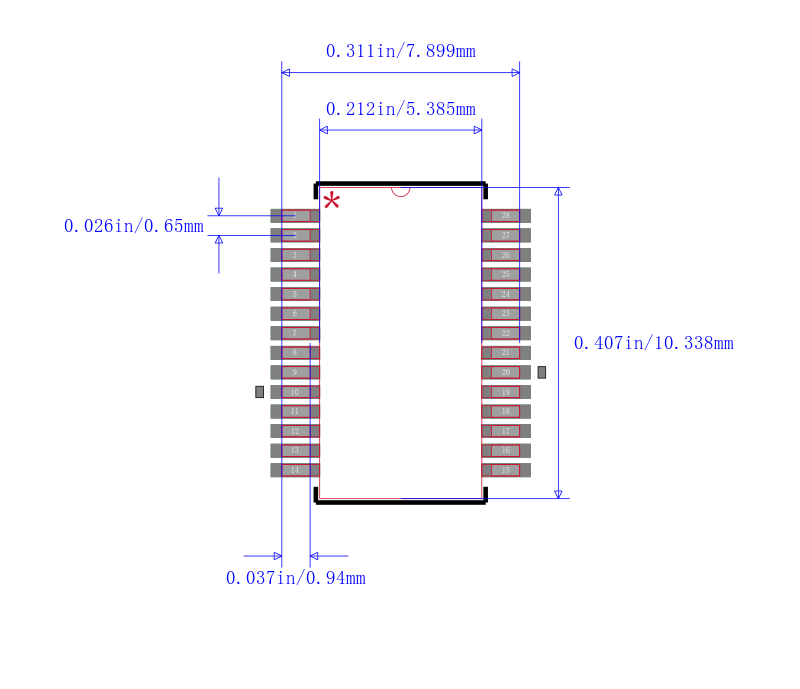

MAXIM INTEGRATED PRODUCTS  MAX211ECAI+T  芯片, RS232 收发器, 116KBPS, 5.5V, SSOP-28

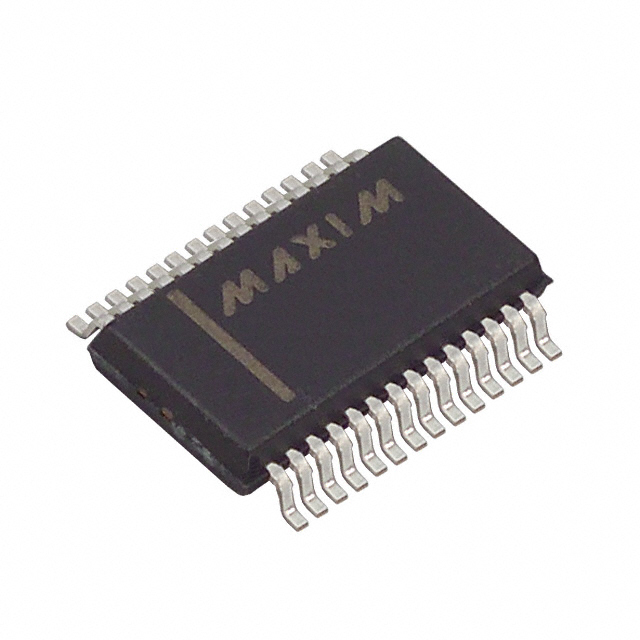

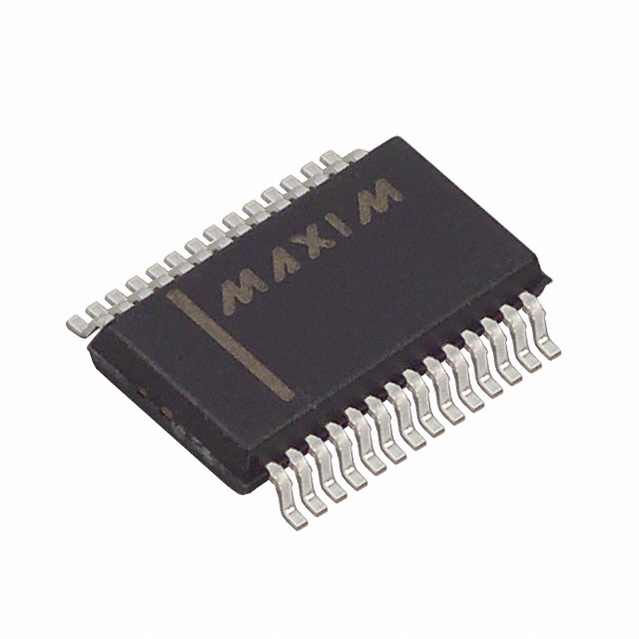

The is a TTL tri-state ±15KV ESD protected, +5V RS232 transceiver in 28 pin SSOP package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM Human Body Model protection and integrated charge pump circuitry for single 5V supply operation. This transceiver meets all EIA/TIA232E and CCITT V.28 specifications at data rate up to 120Kbps when loaded. The device is typically used in battery powered equipment.

.

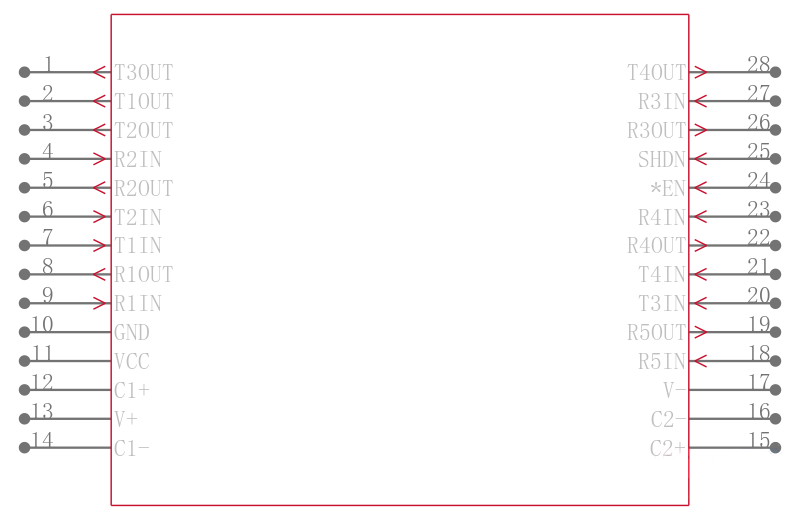

Four drivers and five receivers

.

Supply voltage range from 4.5V to 5.5V

.

Operating temperature range from 0°C to 70°C

.

Supply current is 14mA

.

Four 0.1µF external capacitors

.

Shutdown supply current is 1µA to save power for reduced power requirement

.

Saves board space
