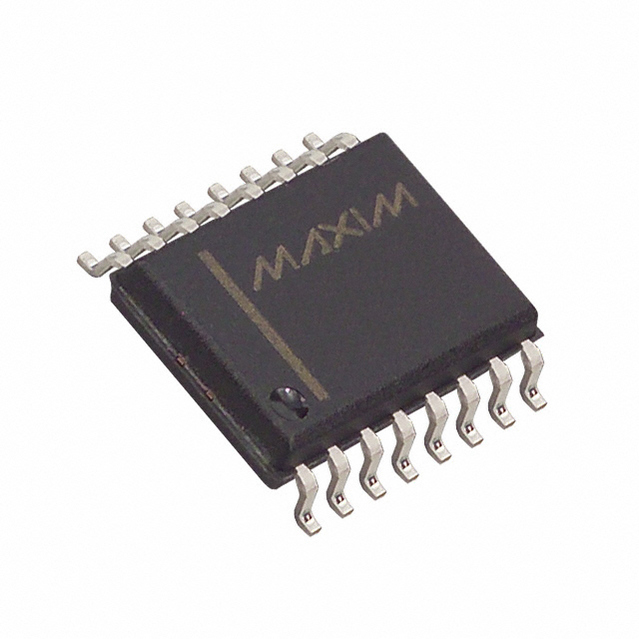

MAXIM INTEGRATED PRODUCTS MAX202ECWE+T 芯片, RS232 收发器, 120KBPS, 5.5V, WSOIC-16
The is a ±15KV ESD protected, +5V RS232 transceiver in 16 pin WSOIC package. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM Human Body Model protection and integrated charge pump circuitry for single 5V supply operation. This transceiver meets all EIA/TIA232E and CCITT V.28 specifications at data rate up to 120Kbps when loaded. The device is typically used in battery powered equipment and portable diagnostics equipment.
电源电压DC 4.50V min
针脚数 16
工作温度Max 70 ℃
工作温度Min 0 ℃
电源电压 4.5V ~ 5.5V
电源电压Max 5.5 V
电源电压Min 4.5 V
安装方式 Surface Mount
引脚数 16
封装 WSOIC-16
封装 WSOIC-16
工作温度 0℃ ~ 70℃
产品生命周期 Unknown
包装方式 Cut Tape CT
制造应用 Portable Devices, Medical, Communications & Networking
RoHS标准 RoHS Compliant
含铅标准 Lead Free
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
MAX202ECWE+T Maxim Integrated 美信 | 当前型号 | 当前型号 |
MAX232ECWE+ 美信 | 完全替代 | MAX202ECWE+T和MAX232ECWE+的区别 |
MAX232ECPE+ 美信 | 完全替代 | MAX202ECWE+T和MAX232ECPE+的区别 |
MAX232ECWE+T 美信 | 完全替代 | MAX202ECWE+T和MAX232ECWE+T的区别 |
