收发器, AppleTalk, RS422, 2驱动器, 3接收器, 5V电源, SO-18

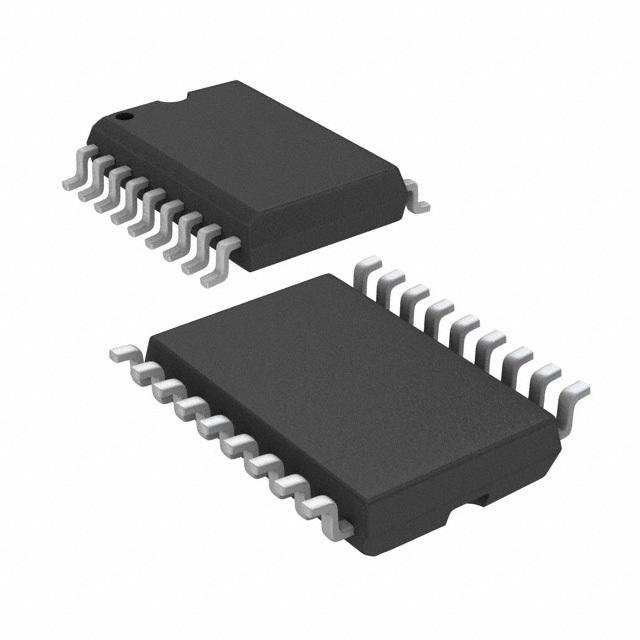

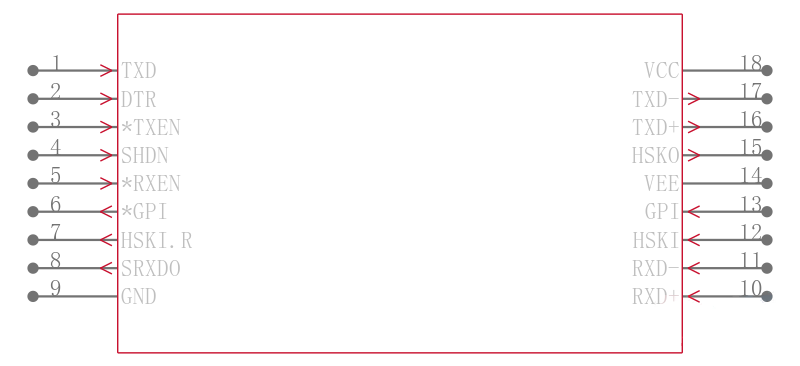

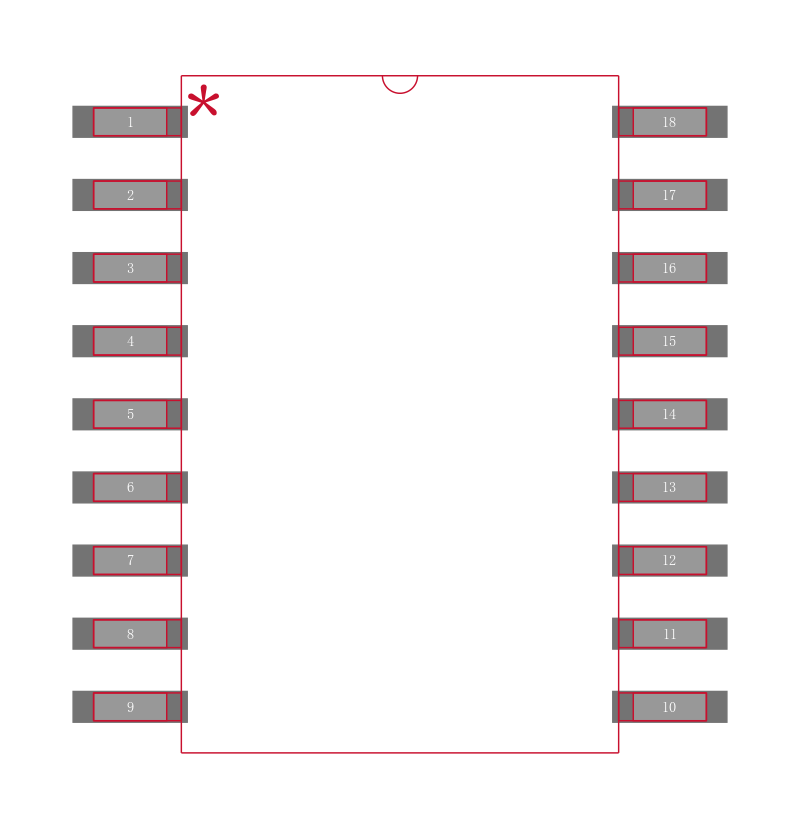

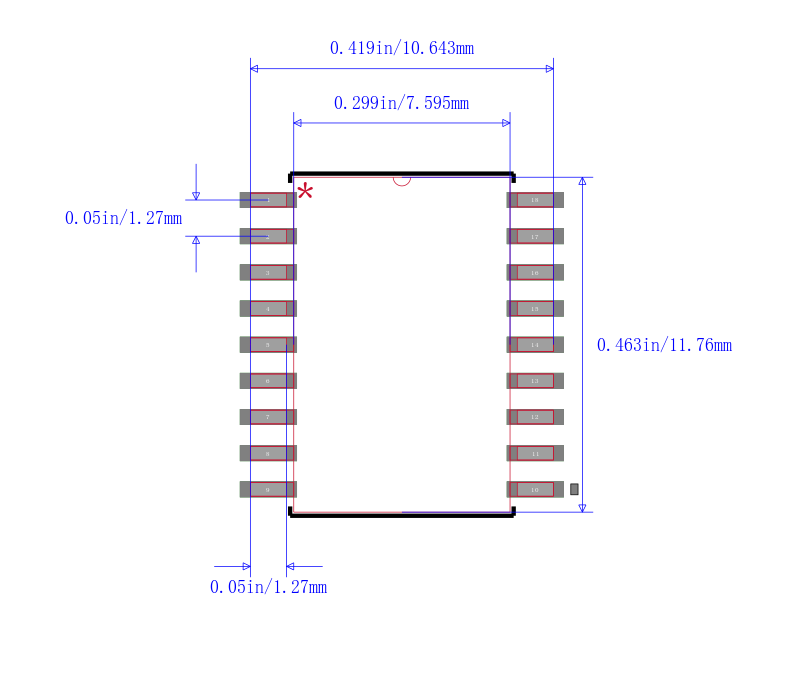

The from Products is a low power, AppleTalk™ interface transceiver in 18 pin WSOIC package. It is designed specifically for communicating with AppleTalk™ Interfaces. It has one differential and one single ended driver plus one differential and two single ended receivers, all of which meet the AppleTalk™ interface specifications. The single ended and differential drivers have ±5V output voltage range when they are active and have thermal shutdown protection against short circuits. The drivers remain in a high impedance state when disabled or shutdown. One single ended receiver is configured as an inverter and the other is configured as a buffer. The drivers and receivers are disable during shutdown mode, when the quiescent current is reduced to only 30µA. Applications include AppleTalk™ interfaces, Apple printer interfaces, Apple peripheral interfaces and EIA/TIA-232/562 to RS422 conversion.
- .
- Differential drivers/receivers compatible with RS422
- .
- Single ended drivers/receivers compatible with EIA/TIA-562 and EIA/TIA-232E
- .
- Negative supply current of 100µA
- .
- Uses only 3mA maximum when fully operational
- .
- Input threshold of single ended receivers are TTL compatible but input voltages can vary between ±7V
- .
- Input threshold of differential receivers are ±200mV and have common mode range of ±7V
- .
- Operating temperature range from 0°C to 70°C
- .
- Apple Talk Interfaces; Apple Printer Interfaces; Apple Peripheral Interface; EIA/TIA-232/562 to RS-422 Conversion
