MAX3468EPA+

MAXIM INTEGRATED PRODUCTS  MAX3468EPA+  芯片, RS422/RS485 收发器, 30MBPS, 5.25V, DIP-8

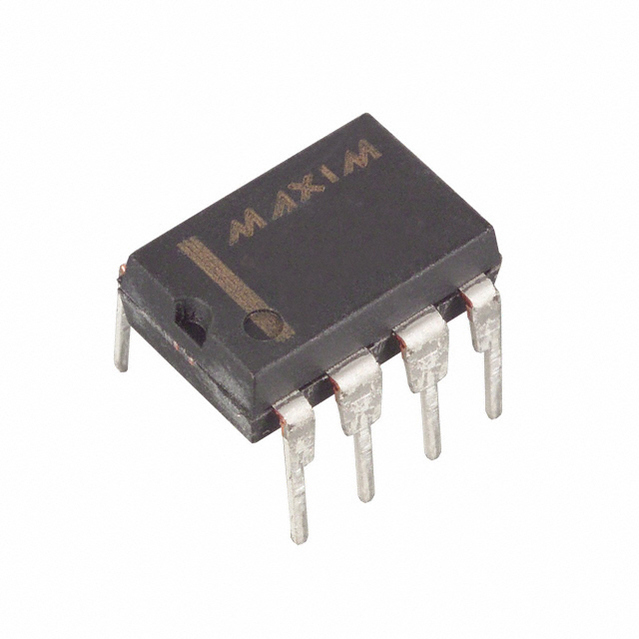

The is a +5V, fail-safe, profibus RS485/RS422 transceiver in 8 pin DIP package. This high speed and half duplex differential bus transceiver is designed to meet TIA/EIA-422-B, TIA/EIA-485-A, V.11 and X.27 standards. It complies with profibus specification providing +2.1V minimum output level with 54ohm load and 40Mbps data rate. The MAX3468 contains one three state differential line driver and one differential input line receiver. The device operates from +5V supply and feature true fail-safe circuitry which provides logic high receiver output when receiver inputs are open or shorted. This enables all receiver outputs on a terminated bus to output logic highs when all transmitters are disabled. It has 1/4 standard unit load receiver input impedance that allows 128 transceivers on the bus. The driver and receiver has active-high and active-low enables respectively and can be connected together externally to serve as a direction control. It is used in level translators.

.

Supply voltage range from 4.75V to 5.25V

.

Operating temperature range from -40°C to 85°C

.

15ns transmitter propagation delay and 20ns receiver propagation delay

.

2ns transmitter and receiver skew

.

Designed for multipoint transmissions on long or noisy bus lines

.

High differential driver output level 2.1V on 54ohm

.

1µA shutdown supply current and low supply current of 2.5mA

.

Current limiting and thermal shutdown for driver overload protection

.

Receiver/driver enable function, low power shutdown mode and hot swap function
