MCP2515DM-BM

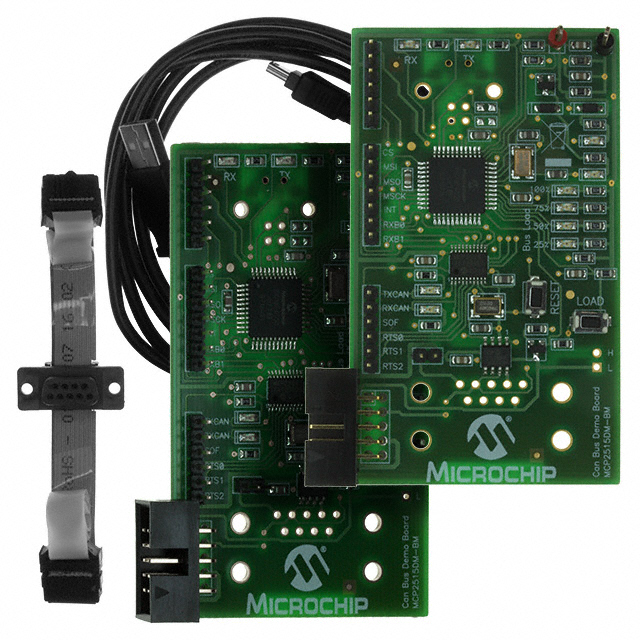

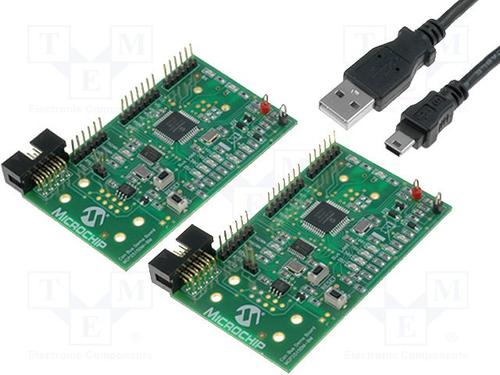

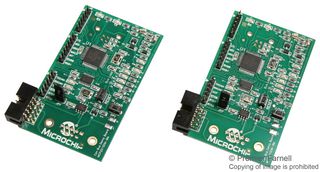

MICROCHIP  MCP2515DM-BM  演示电路板, MCP2515, 两个相同电路板和一个CAN线缆, 用于创建小型CAN总线

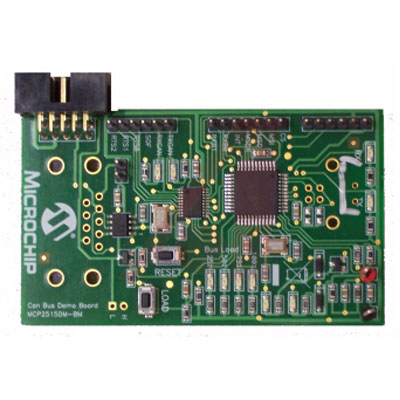

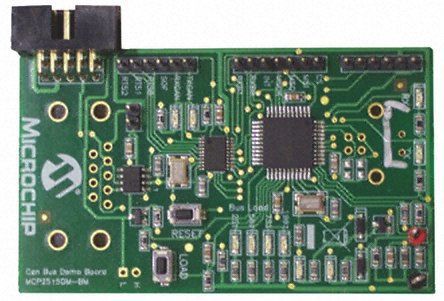

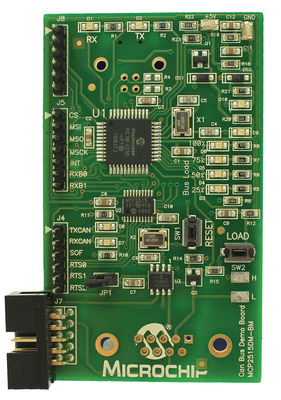

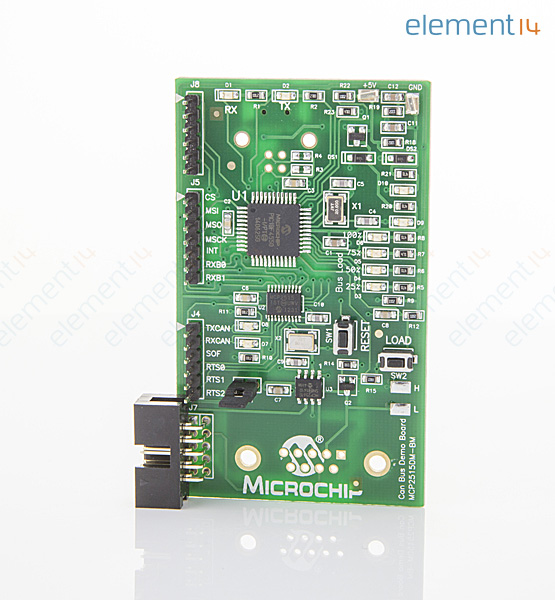

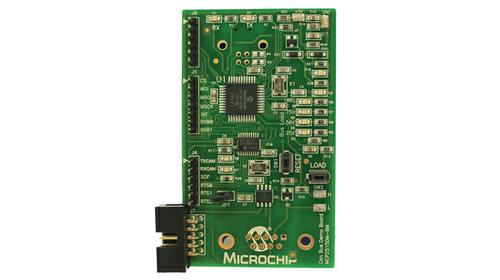

The 是一个CAN Bus监视器 Demo电路板套件to demonstrates the MCP2515 st和alone CAN控制器 interfacing to a CAN bus. The MCP2515 CAN Bus监视器 demo电路板套件consists of two identical电路板s which, when connected together, create a small, 2 node CAN bus. This bus can be 接口d to a PC by connecting one of the two电路板s to the PC USB和运行 the custom 软件. The two nodes are identical in form, however, the 功能 is determined by the connection to each other和the PC. One node connected to the PC will become the监视器和the other one will become the Traffic Generator. The电路板s are reversible. Additionally, the电路板s can be connected to an existing CAN bus where the 软件can监视器 the traffic和the user can interact with the bus as needed. The 软件allows some of the MCP2515 registers to be modified, as well as allows messages to be received和transmitted.

.

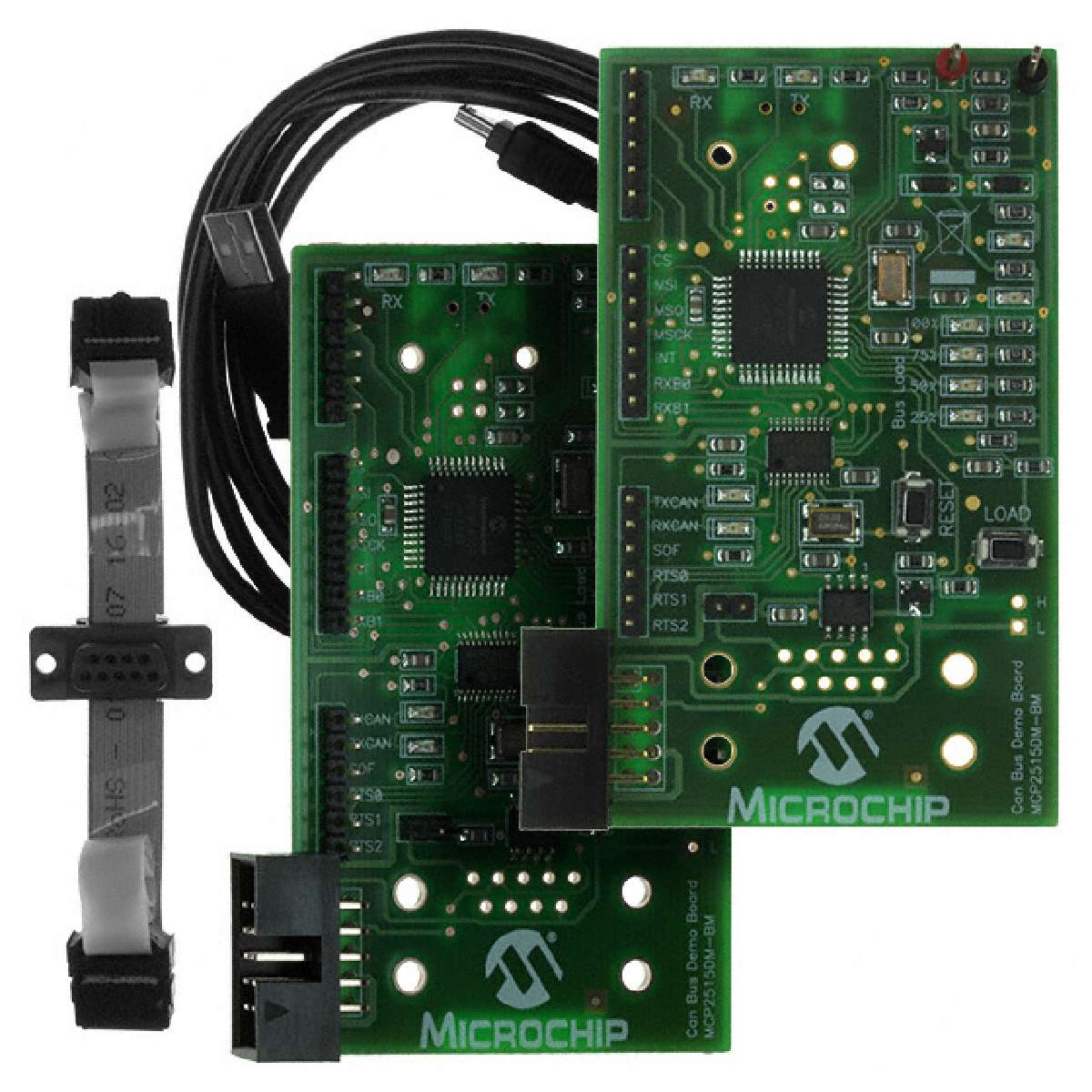

两个相同的电路板和一个CAN线缆用于创造小型CAN总线

.

USB接口和PC软件 用于接口至CAN总线

.

CAN总线电脑软件

.

按钮 用于改变流量产生器节点上的总线负载

.

针座用于监视MCP2515引脚

.

PIC18F4550 PIC微控制器 MCU, 带ICD2接口/电路内编程针座
