MW22B-5-1K

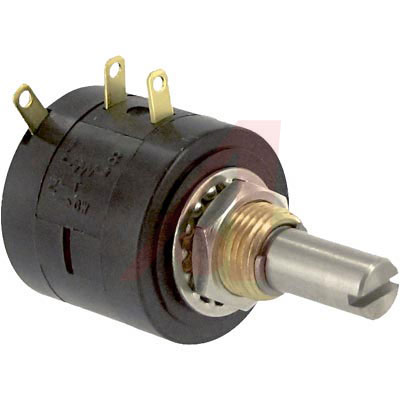

ETI SYSTEMS  MW22B-5-1K  旋转电位器, 绕线, MW22B系列, 1 kohm, 线性, 5 转, 1 W, 套管

Brass bushing, stainless steel slotted shaft and gold-plated terminals.

.

*Resistance** **Tolerance:** 5%. **Operating Temperature Range:** –55°C to +105°C. **Insulation Resistance:** 100 MΩ minimum at 500 VDC. **Dielectric Strength:** 1000 VAC minimum. **Starting Torque:** 1.4 Oz. in. maximum. **Stop Strength:** 48 Oz. in. **Options:** Other resistance values, shaft modifications, sealed construction, high torque, slipping clutch, servo mount, multiple gangs. See page for turn counting dials.

**MW22B-10.** Ten-Turn wirewound MW22B-10 features 1,000,000 turns life and 0.25% linearity. 2 Watts @ 70°C. **MW22B-5.** Five-Turn wirewound features 500,000 turns life and 0.3% linearity. 1 Watt @ 70°C. **MW22B-3.** Three-Turn wirewound features 300,000 turns life and 0.50% linearity. 1 Watt @ 70°C.

Recommended for medical equipment, test and lab equipment, industrial applications.
